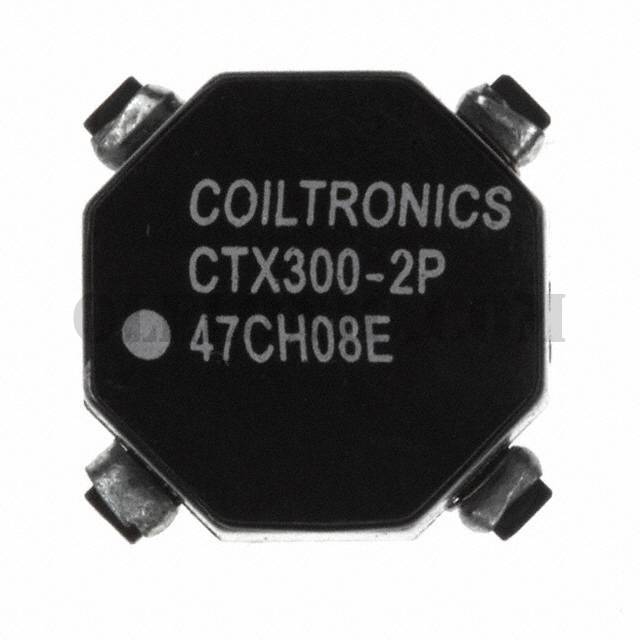

CTX300-2P-R

Part NumberCTX300-2P-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 300.42UH SMD

DatasheetCTX Series ECONO-PAC, OCTA-PAC/PLUS

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 1.2mH Inductance - Connected in Series 300.42µH Inductance - Connected in Parallel 1.176Ohm Max DC Resistance (DCR) - Parallel 420mA Nonstandard

To learn about the specification of CTX300-2P-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX300-2P-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX300-2P-R.
We are offering CTX300-2P-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX300-2P-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	CTX Series ECONO-PAC, OCTA-PAC/PLUS
Standard Package	800
Manufacturer	Eaton - Electronics Division
Series	Econo-Pac™
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	300.42µH
Inductance - Connected In Series	1.2mH
Tolerance	±20%
Current Rating - Parallel	420mA
Current Rating - Series	210mA
DC Resistance (DCR) - Parallel	1.176Ohm Max
DC Resistance (DCR) - Series	4.703Ohm Max
Shielding	Unshielded
Ratings	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)
Height	0.235" (5.97mm)
