CTX15-1-R


CTX15-1-R

Part NumberCTX15-1-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CTX15-1-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package1100
ManufacturerEaton - Electronics Division
SeriesOCTA-PAC®
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2

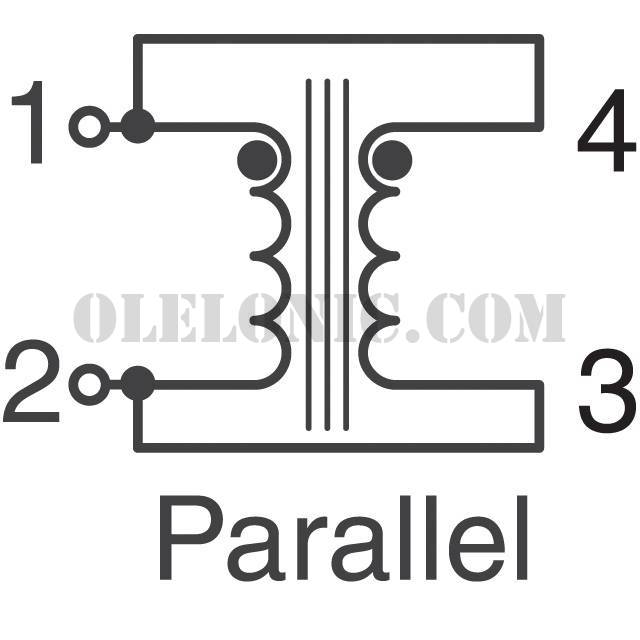

Inductance - Connected In Parallel14.4µH
Inductance - Connected In Series57.6µH
Tolerance±20%
Current Rating - Parallel1.1A
Current Rating - Series550mA
DC Resistance (DCR) - Parallel80mOhm Max
DC Resistance (DCR) - Series319mOhm Max
ShieldingUnshielded
Ratings-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.450" L x 0.450" W (11.43mm x 11.43mm)
Height0.165" (4.19mm)
