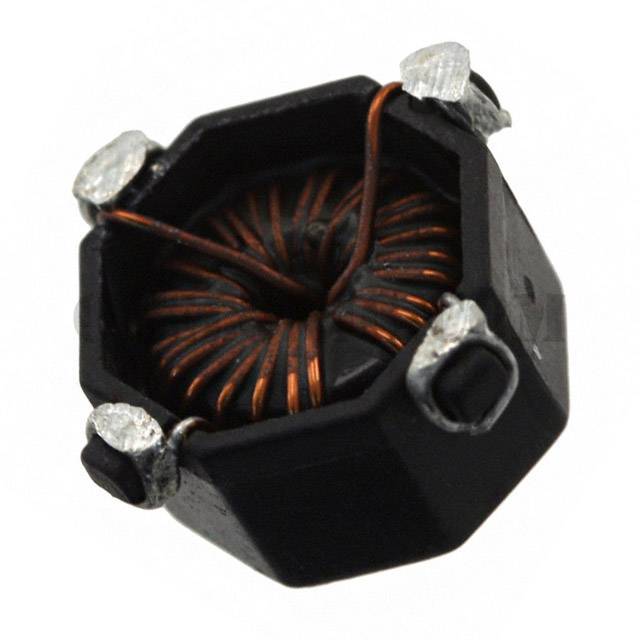

CTX10-2-R


CTX10-2-R

Part NumberCTX10-2-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CTX10-2-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package800
ManufacturerEaton - Electronics Division
SeriesOCTA-PAC®
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel10.58µH
Inductance - Connected In Series42.3µH
Tolerance±20%
Current Rating - Parallel2.5A
Current Rating - Series1.25A
DC Resistance (DCR) - Parallel31mOhm Max
DC Resistance (DCR) - Series125mOhm Max
ShieldingUnshielded
Ratings-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.450" L x 0.450" W (11.43mm x 11.43mm)
Height0.235" (5.97mm)
