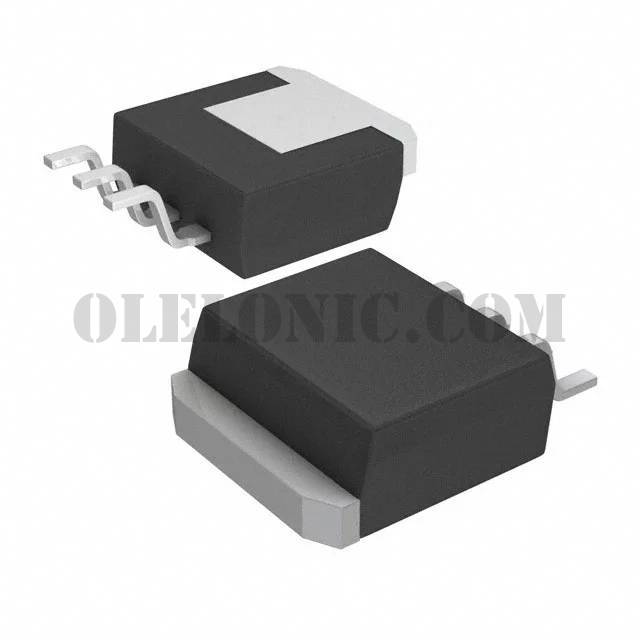

CSD19535KTTT

CSD19535KTTT

Part NumberCSD19535KTTT

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 100V 200A TO263

DatasheetCSD19535KTT

Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 200A (Ta) 300W (Tc) Surface Mount DDPAK/TO-263-3

To learn about the specification of CSD19535KTTT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD19535KTTT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD19535KTTT.
We are offering CSD19535KTTT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD19535KTTT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD19535KTT
Standard Package	50
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	200A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	98nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7930pF @ 50V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DDPAK/TO-263-3
Package / Case	TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
