CSD16415Q5

CSD16415Q5

Part NumberCSD16415Q5

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 25V 8SON

DatasheetCSD16415Q5 Datasheet

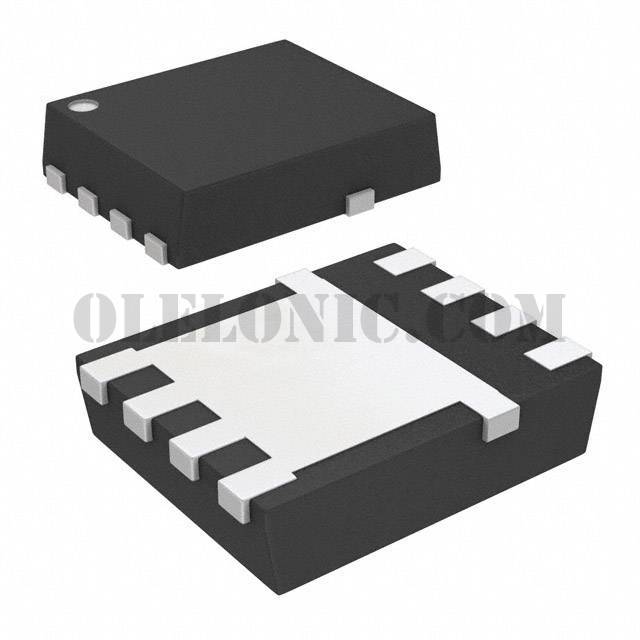

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 25V 100A (Tc) 3.2W (Ta) Surface Mount 8-VSON-CLIP (5x6)

To learn about the specification of CSD16415Q5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD16415Q5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD16415Q5.
We are offering CSD16415Q5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD16415Q5 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD16415Q5 Datasheet
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.15mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	29nC @ 4.5V
Vgs (Max)	+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds	4100pF @ 12.5V
FET Feature	-
Power Dissipation (Max)	3.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSON-CLIP (5x6)
Package / Case	8-PowerTDFN
