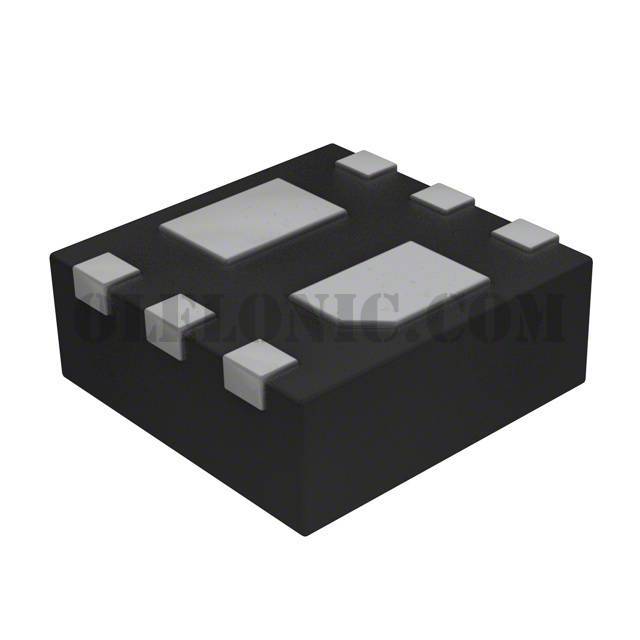

CSD15571Q2

CSD15571Q2

Part NumberCSD15571Q2

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 20V 22A 6-SON

DatasheetCSD15571Q2

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 22A (Ta) 2.5W (Ta) Surface Mount 6-SON (2x2)

To learn about the specification of CSD15571Q2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD15571Q2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD15571Q2.
We are offering CSD15571Q2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD15571Q2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD15571Q2
Standard Package	3000
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	22A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	15mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.7nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	419pF @ 10V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-SON (2x2)
Package / Case	6-WDFN Exposed Pad
