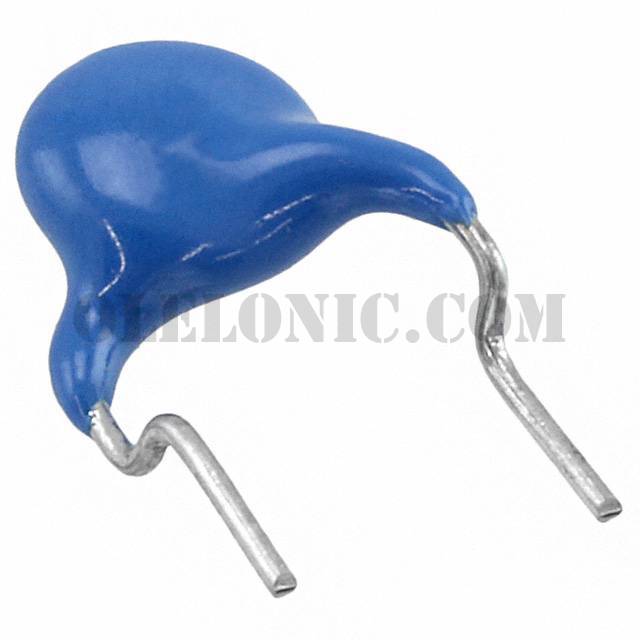

Categories	Capacitors / Ceramic Capacitors
Datasheet	CS Series, Automotive
Standard Package	1000
Manufacturer	TDK Corporation
Series	CS
Packaging	Bulk
Part Status	Active
Capacitance	1500pF
Tolerance	±20%
Voltage - Rated	440VAC
Temperature Coefficient	Z5U
Operating Temperature	-25°C ~ 125°C
Features	High Voltage
Ratings	AEC-Q200, X1, Y2
Applications	Safety, Automotive
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.295" Dia (7.50mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked

CS80ZU2GA222MANKA	TDK Corporation, 2200pF ±20% 440VAC Ceramic Capacitor Z5U Radial, Disc, CS	View
CS45SL2GA220JANKA	TDK Corporation, 22pF ±5% 440VAC Ceramic Capacitor SL Radial, Disc, CS	View
CS45SL2GA470JANKA	TDK Corporation, 47pF ±5% 440VAC Ceramic Capacitor SL Radial, Disc, CS	View
CS75-B2GA471KANKA	TDK Corporation, 470pF ±10% 440VAC Ceramic Capacitor B Radial, Disc, CS	View
CS85-B2GA681KANKA	TDK Corporation, 680pF ±10% 440VAC Ceramic Capacitor B Radial, Disc, CS	View
CS65-B2GA101KANKA	TDK Corporation, 100pF ±10% 300VAC Ceramic Capacitor B Radial, Disc, CS	View
CS11ZU2GA472MANKA	TDK Corporation, 4700pF ±20% 300VAC Ceramic Capacitor Z5U Radial, Disc, CS	View
CS45SL2GA100JANKA	TDK Corporation, 10pF ±5% 440VAC Ceramic Capacitor SL Radial, Disc, CS	View
CS45SL2GA330JANKA	TDK Corporation, 33pF ±5% 440VAC Ceramic Capacitor SL Radial, Disc, CS	View
CS65-B2GA151KANKA	TDK Corporation, 150pF ±10% 300VAC Ceramic Capacitor B Radial, Disc, CS	View
CS95ZU2GA332MANKA	TDK Corporation, 3300pF ±20% 440VAC Ceramic Capacitor Z5U Radial, Disc, CS	View
CS75ZU2GA152MANKA	TDK Corporation, 1500pF ±20% 440VAC Ceramic Capacitor Z5U Radial, Disc, CS	View

CS75ZU2GA152MANKA

Part NumberCS75ZU2GA152MANKA
