Categories	Capacitors / Ceramic Capacitors
Datasheet	CK45 Series
Standard Package	1000
Manufacturer	TDK Corporation
Series	CK45
Packaging	Bulk
Part Status	Active
Capacitance	2200pF
Tolerance	±10%
Voltage - Rated	3000V (3kV)
Temperature Coefficient	B
Operating Temperature	-25°C ~ 105°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole

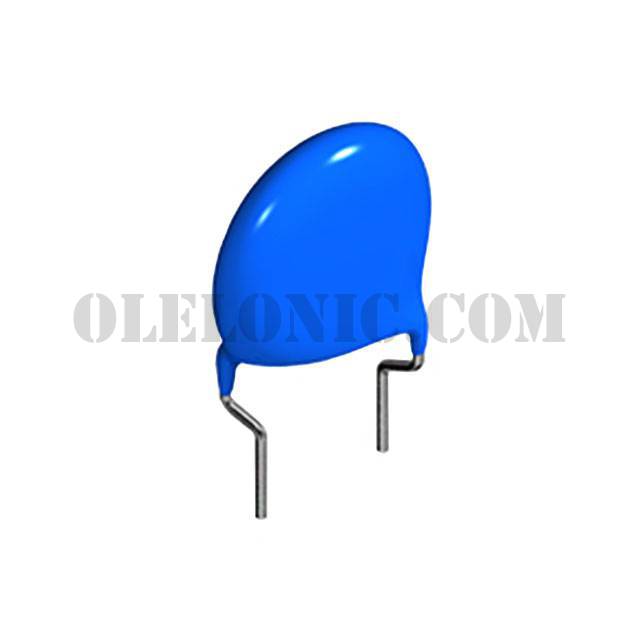

Package / Case	Radial, Disc
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.650" (16.50mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked

CK45-B3AD222KYVNA	TDK Corporation, 2200pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-E3DD472ZYGNA	TDK Corporation, 4700pF -20%, +80% 2000V (2kV) Ceramic Capacitor E Radial, Disc, CK45	View
CK45-E3FD472ZYNNA	TDK Corporation, 4700pF -20%, +80% 3000V (3kV) Ceramic Capacitor E Radial, Disc, CK45	View
CK45-B3AD102KYNNA	TDK Corporation, 1000pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-E3AD102ZYNNA	TDK Corporation, 1000pF -20%, +80% 1000V (1kV) Ceramic Capacitor E Radial, Disc, CK45	View
CK45-B3AD102KYGNA	TDK Corporation, 1000pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-E3DD102ZYNNA	TDK Corporation, 1000pF -20%, +80% 2000V (2kV) Ceramic Capacitor E Radial, Disc, CK45	View
CK45-E3AD222ZYNNA	TDK Corporation, 2200pF -20%, +80% 1000V (1kV) Ceramic Capacitor E Radial, Disc, CK45	View
CK45-B3AD152KYVNA	TDK Corporation, 1500pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-E3FD102ZYNNA	TDK Corporation, 1000pF -20%, +80% 3000V (3kV) Ceramic Capacitor E Radial, Disc, CK45	View
CK45-B3FD102KYVNA	TDK Corporation, 1000pF ±10% 3000V (3kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-B3AD471KYNNA	TDK Corporation, 470pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc, CK45	View

CK45-B3FD222KYGNA

Part NumberCK45-B3FD222KYGNA
