Categories	Capacitors / Ceramic Capacitors
Datasheet	CK45 Series
Standard Package	1000
Manufacturer	TDK Corporation
Series	CK45
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	-20%, +80%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	E
Operating Temperature	-25°C ~ 105°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.453" Dia (11.50mm)
Height - Seated (Max)	0.610" (15.50mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked

CK45-E3AD103ZYGNA	TDK Corporation, 10000pF -20%, +80% 1000V (1kV) Ceramic Capacitor E Radial, Disc, CK45	View
CK45-B3AD222KYGNA	TDK Corporation, 2200pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-B3AD471KYVNA	TDK Corporation, 470pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-E3AD472ZYVNA	TDK Corporation, 4700pF -20%, +80% 1000V (1kV) Ceramic Capacitor E Radial, Disc, CK45	View
CK45-B3AD102KYNNA	TDK Corporation, 1000pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-B3AD101KYVNA	TDK Corporation, 100pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-B3FD222KYGNA	TDK Corporation, 2200pF ±10% 3000V (3kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-E3FD102ZYNNA	TDK Corporation, 1000pF -20%, +80% 3000V (3kV) Ceramic Capacitor E Radial, Disc, CK45	View
CK45-B3DD472KYGNA	TDK Corporation, 4700pF ±10% 2000V (2kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-B3FD681KYVNA	TDK Corporation, 680pF ±10% 3000V (3kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-B3DD332KYGNA	TDK Corporation, 3300pF ±10% 2000V (2kV) Ceramic Capacitor B Radial, Disc, CK45	View
CK45-B3AD222KYVNA	TDK Corporation, 2200pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc, CK45	View

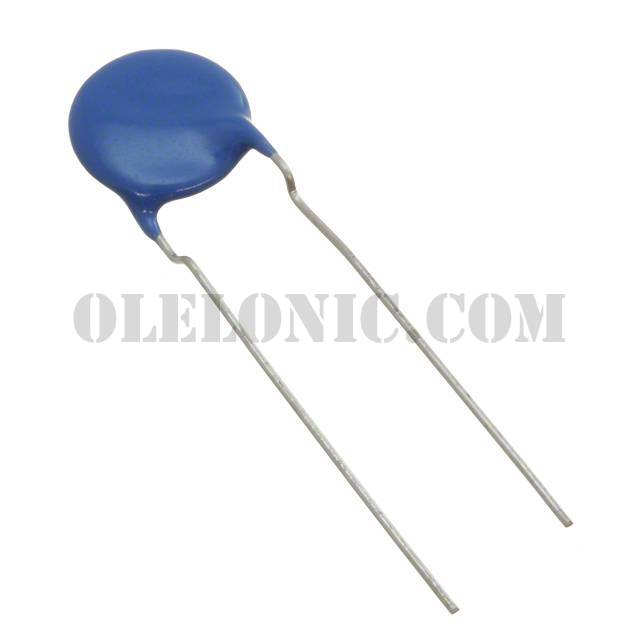

CK45-E3AD103ZYGNA

Part NumberCK45-E3AD103ZYGNA
