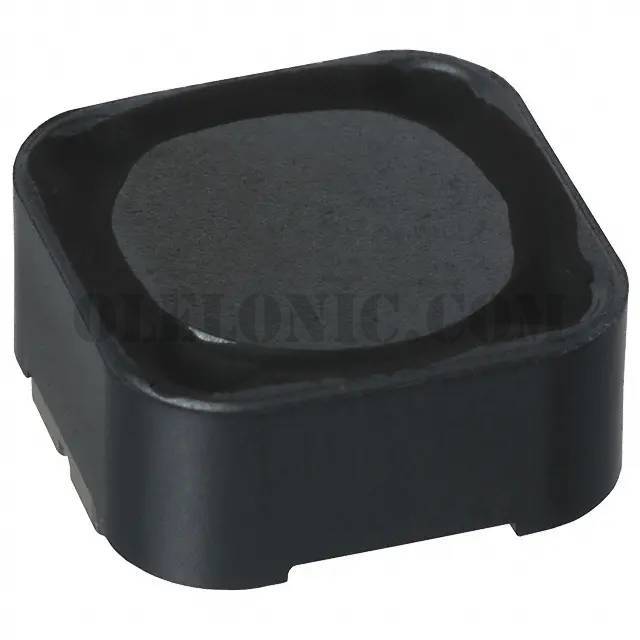

CDRH125NP-220MC
CDRH125NP-220MC
Part Number CDRH125NP-220MC
Description FIXED IND 22UH 2.8A 36 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 22µH Shielded Inductor 2.8A 36mOhm Max Nonstandard
To learn about the specification of CDRH125NP-220MC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CDRH125NP-220MC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CDRH125NP-220MC.
We are offering CDRH125NP-220MC for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CDRH125NP-220MC - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet CDRH125, CDRH125/LD
Standard Package 1
Manufacturer Sumida America Components Inc.
Series CDRH125
Packaging Cut Tape (CT)
Part Status Active
Type -
Material - Core -
Inductance 22µH
Tolerance ±20%
Current Rating (Amps) 2.8A
Current - Saturation -
Shielding Shielded
DC Resistance (DCR) 36mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 100°C
Inductance Frequency - Test 1kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.236" (6.00mm)
