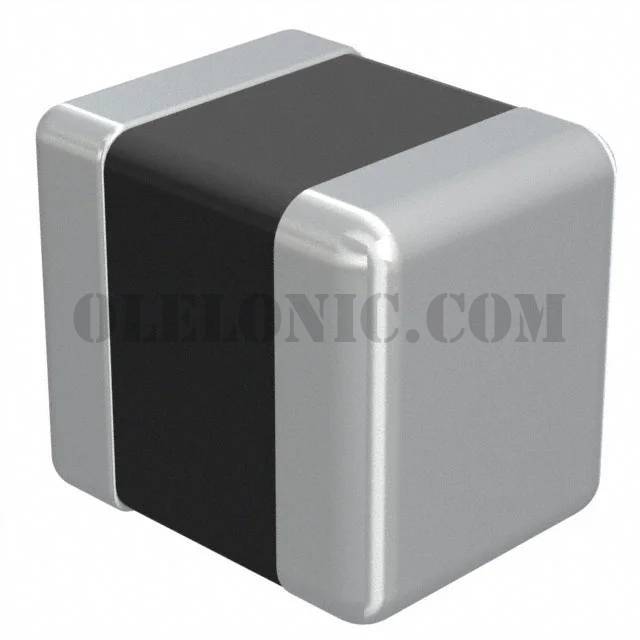

CBC2016T220M

Part NumberCBC2016T220M

ManufacturerTaiyo Yuden

DescriptionFIXED IND 22UH 240MA 2.34 OHM

DatasheetCBC2016T220M View all Specification

Package / Case0806 (2016 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Unshielded Wirewound Inductor 240mA 2.34Ohm Max 0806 (2016 Metric)

To learn about the specification of CBC2016T220M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CBC2016T220M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CBC2016T220M.
We are offering CBC2016T220M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CBC2016T220M - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	CBC2016T220M View all Specification
Standard Package	2000
Manufacturer	Taiyo Yuden
Series	CB, C Type
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±20%
Current Rating (Amps)	240mA
Current - Saturation	250mA
Shielding	Unshielded
DC Resistance (DCR)	2.34Ohm Max
Q @ Freq	-
Frequency - Self Resonant	16MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	2.52MHz
Mounting Type	Surface Mount
Package / Case	0806 (2016 Metric)
Supplier Device Package	0806 (2016 Metric)
Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.071" (1.80mm)
