Categories	Capacitors / Film Capacitors
Datasheet	CB Series-PEN
Standard Package	1200
Manufacturer	AVX Corporation
Series	CB
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	160V
Voltage Rating - DC	250V
Dielectric Material	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Size / Dimension	0.185" L x 0.126" W (4.70mm x 3.20mm)
Height - Seated (Max)	0.079" (2.00mm)
Termination	Solder Pads
Lead Spacing	-
Applications	General Purpose
Ratings	-
Features	-

CB2012T101K	Taiyo Yuden, 100µH Unshielded Wirewound Inductor 130mA 9.1Ohm Max 0805 (2012 Metric), CB	View
CBC2518T330K	Taiyo Yuden, 33µH Unshielded Wirewound Inductor 320mA 1.95Ohm Max 1007 (2518 Metric), CB, C Type	View
CBC3225T6R8MR	Taiyo Yuden, 6.8µH Unshielded Wirewound Inductor 940mA 156mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC2016T470K	Taiyo Yuden, 47µH Unshielded Wirewound Inductor 150mA 5.59Ohm Max 0806 (2016 Metric), CB, C Type	View
CBC3225T1R5MR	Taiyo Yuden, 1.5µH Unshielded Wirewound Inductor 1.31A 78mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC3225T220MRV	Taiyo Yuden, 22µH Unshielded Wirewound Inductor 500mA 351mOhm Max 1210 (3225 Metric), CB, C Type	View
CB2016T1R5M	Taiyo Yuden, 1.5µH Unshielded Wirewound Inductor 1A 143mOhm Max 0806 (2016 Metric), CB	View
CB2518T6R8M	Taiyo Yuden, 6.8µH Unshielded Wirewound Inductor 930mA 195mOhm Max 1007 (2518 Metric), CB	View
CB2012T101K	Taiyo Yuden, 100µH Unshielded Wirewound Inductor 130mA 9.1Ohm Max 0805 (2012 Metric), CB	View
CBC2016T220M	Taiyo Yuden, 22µH Unshielded Wirewound Inductor 240mA 2.34Ohm Max 0806 (2016 Metric), CB, C Type	View
CBC3225T150KRV	Taiyo Yuden, 15µH Unshielded Wirewound Inductor 590mA 253.5mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC3225T100MRV	Taiyo Yuden, 10µH Unshielded Wirewound Inductor 720mA 172.9mOhm Max 1210 (3225 Metric), CB, C Type	View

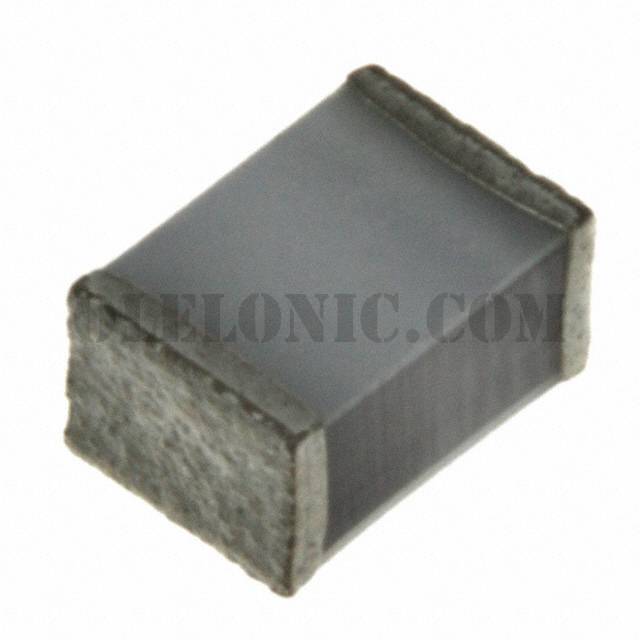

CB037G0103JBA
