Categories	Capacitors / Film Capacitors
Datasheet	CB Series Datasheet
Standard Package	2300
Manufacturer	AVX Corporation
Series	CB
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	0.68µF
Tolerance	±5%
Voltage Rating - AC	40V
Voltage Rating - DC	63V
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	2220 (5750 Metric)
Size / Dimension	0.228" L x 0.197" W (5.80mm x 5.00mm)
Height - Seated (Max)	0.157" (4.00mm)
Termination	Solder Pads
Lead Spacing	-
Applications	General Purpose
Ratings	-
Features	-

CBC3225T4R7MR	Taiyo Yuden, 4.7µH Unshielded Wirewound Inductor 1.01A 130mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC2012T2R2MV	Taiyo Yuden, 2.2µH Unshielded Wirewound Inductor 485mA 429mOhm Max 0805 (2012 Metric), CB, C Type	View
CBC3225T470KRV	Taiyo Yuden, 47µH Unshielded Wirewound Inductor 320mA 871mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC2518T220K	Taiyo Yuden, 22µH Unshielded Wirewound Inductor 460mA 1.001Ohm Max 1007 (2518 Metric), CB, C Type	View
CB2016T4R7MV	Taiyo Yuden, 4.7µH Unshielded Wirewound Inductor 410mA 325mOhm Max 0806 (2016 Metric), CB	View
CBC2518T2R2MV	Taiyo Yuden, 2.2µH Unshielded Wirewound Inductor 630mA 169mOhm Max 1007 (2518 Metric), CB, C Type	View
CBC3225T100KRV	Taiyo Yuden, 10µH Unshielded Wirewound Inductor 720mA 172.9mOhm Max 1210 (3225 Metric), CB, C Type	View
CB2016T1R5M	Taiyo Yuden, 1.5µH Unshielded Wirewound Inductor 1A 143mOhm Max 0806 (2016 Metric), CB	View
CBC3225T2R2MR	Taiyo Yuden, 2.2µH Unshielded Wirewound Inductor 1.13A 104mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC2012T470K	Taiyo Yuden, 47µH Unshielded Wirewound Inductor 150mA 7.54Ohm Max 0805 (2012 Metric), CB, C Type	View
CB2518T6R8M	Taiyo Yuden, 6.8µH Unshielded Wirewound Inductor 930mA 195mOhm Max 1007 (2518 Metric), CB	View
CBC3225T330KR	Taiyo Yuden, 33µH Unshielded Wirewound Inductor 570mA 533mOhm Max 1210 (3225 Metric), CB, C Type	View

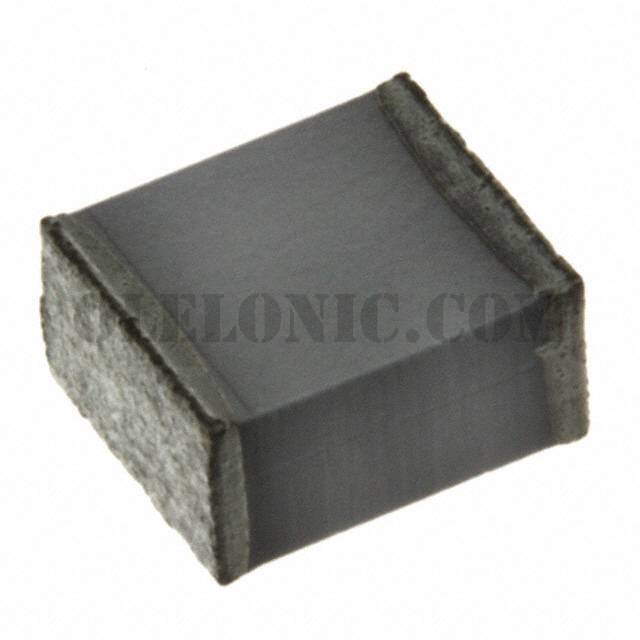

CB042D0684JBC
