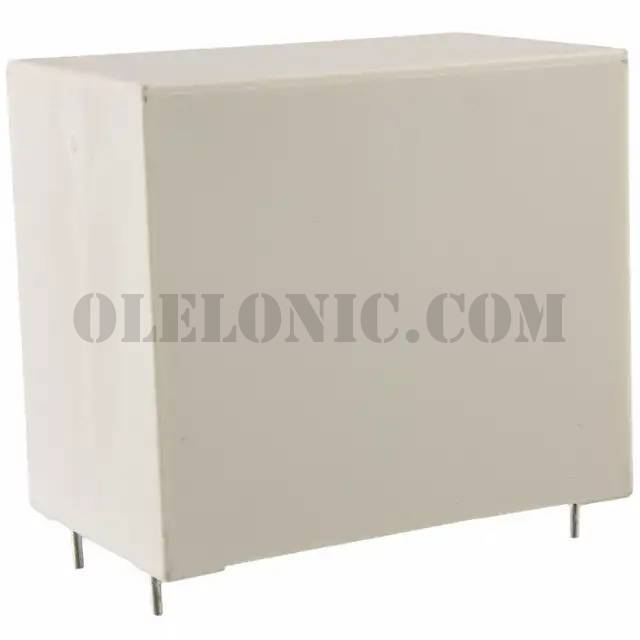

Categories	Capacitors / Film Capacitors
Datasheet	C4AE Series
Standard Package	23
Manufacturer	KEMET
Series	C4AE
Packaging	Bulk
Part Status	Active
Capacitance	27µF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	1100V (1.1kV)
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	4.9 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	2.264" L x 1.378" W (57.50mm x 35.00mm)
Height - Seated (Max)	1.969" (50.00mm)
Termination	PC Pins
Lead Spacing	1.969" (50.00mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-

C4AEOBU4500A11J	KEMET, 5µF Film Capacitor 900V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEOBU4800A12J	KEMET, 8µF Film Capacitor 900V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEOBW5120A3FJ	KEMET, 12µF Film Capacitor 900V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEQBU4500A12J	KEMET, 5µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, C4AE	View
C4AEJBW5200A3JJ	KEMET, 20µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEQBW5200A3MJ	KEMET, 20µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEQBW5120A3LJ	KEMET, 12µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEGBU5100A1XK	KEMET, 10µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEHBW5750A3NJ	KEMET, 75µF Film Capacitor 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEHBU4330A1WJ	KEMET, 3.3µF Film Capacitor 600V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEGBU5200A12J	KEMET, 20µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEJBU4800A11J	KEMET, 8µF Film Capacitor 700V Polypropylene (PP), Metallized Radial, C4AE	View

C4AEQBW5270A3NJ

Part NumberC4AEQBW5270A3NJ
