BSC080P03LSGAUMA1
BSC080P03LSGAUMA1
Part Number BSC080P03LSGAUMA1
Description MOSFET P-CH 30V 30A TDSON-8

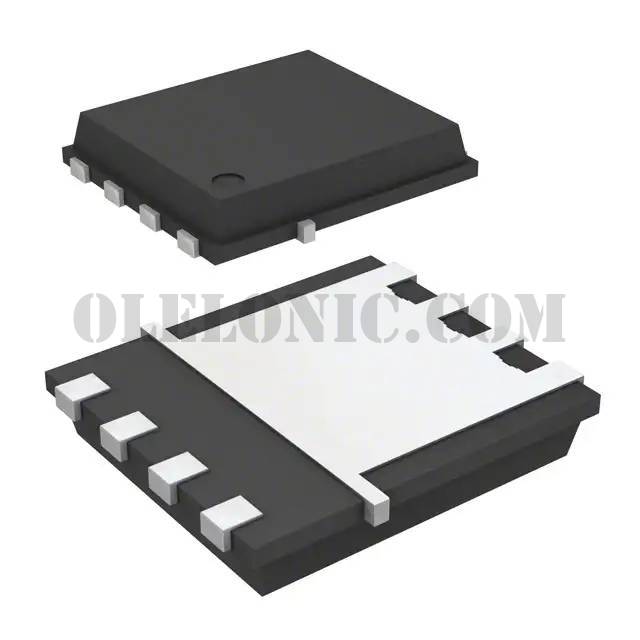

Package / Case 8-PowerVDFN
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description P-Channel 30V 16A (Ta), 30A (Tc) 2.5W (Ta), 89W (Tc) Surface Mount PG-TDSON-8-3
To learn about the specification of BSC080P03LSGAUMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSC080P03LSGAUMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSC080P03LSGAUMA1.
We are offering BSC080P03LSGAUMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
BSC080P03LSGAUMA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet BSC080P03LS G
Standard Package 5000
Manufacturer Infineon Technologies
Series OptiMOS™
Packaging Tape & Reel (TR)
Part Status Not For New Designs
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 16A (Ta), 30A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 8mOhm @ 30A, 10V
Vgs(th) (Max) @ Id 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 122.4nC @ 10V
Vgs (Max) ±25V
Input Capacitance (Ciss) (Max) @ Vds 6140pF @ 15V
FET Feature -
Power Dissipation (Max) 2.5W (Ta), 89W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TDSON-8-3
Package / Case 8-PowerVDFN
