Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	BFP843F
Standard Package	3000
Manufacturer	Infineon Technologies
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	2.25V
Frequency - Transition	-
Noise Figure (dB Typ @ f)	0.8dB ~ 1.7dB @ 450MHz ~ 10GHz
Gain	13.5dB ~ 25dB
Power - Max	125mW
DC Current Gain (hFE) (Min) @ Ic, Vce	150 @ 15mA, 1.8V
Current - Collector (Ic) (Max)	55mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount

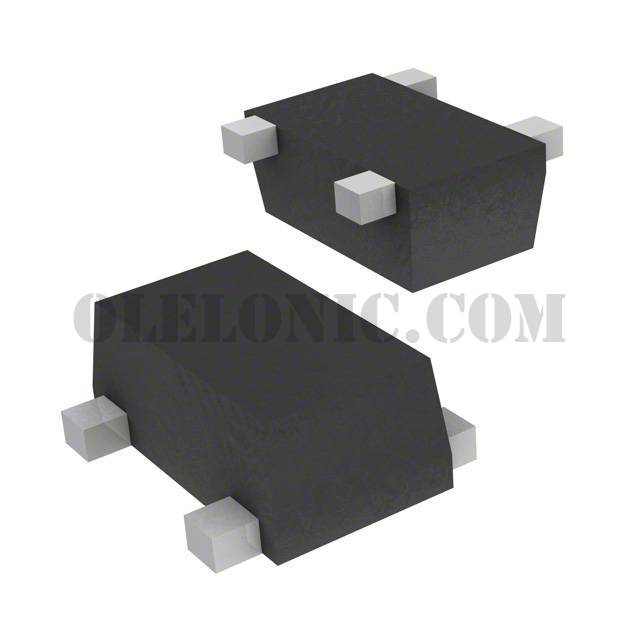

Package / Case	4-SMD, Flat Leads
Supplier Device Package	TSFP-4-1
Base Part Number	BFP843
