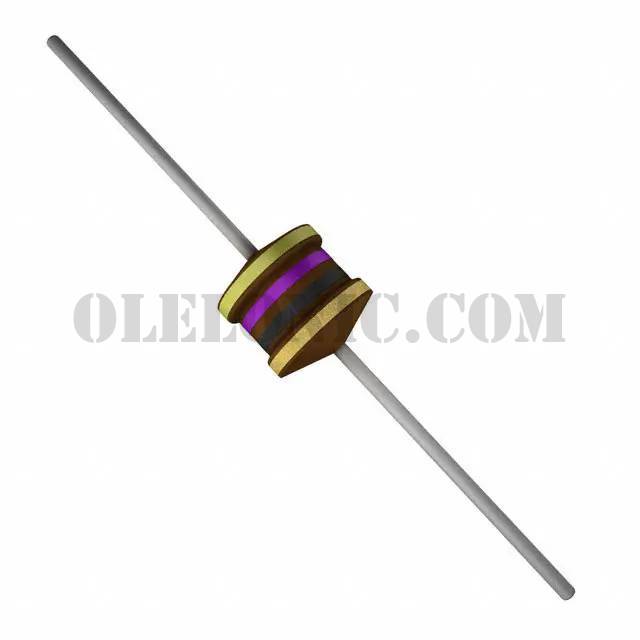

B78108E1473J000


B78108E1473J000

Part NumberB78108E1473J000

Manufacturer

Description

Datasheet

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B78108E1473J000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package5000
ManufacturerEPCOS (TDK)
SeriesBC+
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance47µH
Tolerance±5%
Current Rating (Amps)950mA
Current - Saturation870mA
ShieldingUnshielded
DC Resistance (DCR)680mOhm Max
Q @ Freq40 @ 796kHz
Frequency - Self Resonant8MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device PackageAxial
Size / Dimension0.157" Dia x 0.374" L (4.00mm x 9.50mm)
Height - Seated (Max)-
