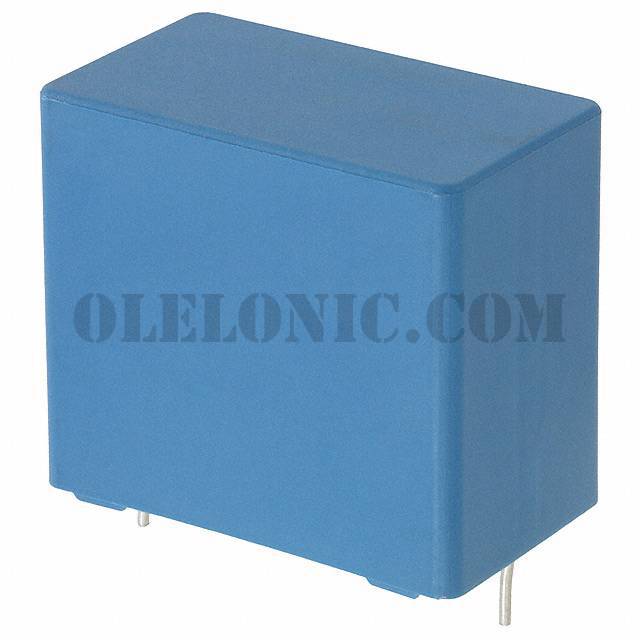

Categories	Capacitors / Film Capacitors
Datasheet	B32774,76,78 Series
Standard Package	462
Manufacturer	EPCOS (TDK)
Series	B32774
Packaging	Bulk
Part Status	Active
Capacitance	5µF
Tolerance	±10%
Voltage Rating - AC	-
Voltage Rating - DC	800V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	15.3 mOhms
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.551" W (31.50mm x 14.00mm)
Height - Seated (Max)	0.965" (24.50mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	DC Link, DC Filtering
Ratings	-
Features	Long Life

B32778G9506K000	EPCOS (TDK), 50µF Film Capacitor 900V Polypropylene (PP), Metallized Radial - 4 Leads, B32778	View
B32774D1155K000	EPCOS (TDK), 1.5µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32774	View
B32778G0406K000	EPCOS (TDK), 40µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32778	View
B32774D8505K000	EPCOS (TDK), 5µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32774	View
B32778G8556K000	EPCOS (TDK), 55µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32778	View
B32776T4166K000	EPCOS (TDK), 16µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32776	View
B32774D4106K000	EPCOS (TDK), 10µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32774	View
B32774D1305K000	EPCOS (TDK), 3µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32774	View
B32776G1106K000	EPCOS (TDK), 10µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32776	View
B32776T1275K000	EPCOS (TDK), 2.7µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32776	View
B32776T0505K000	EPCOS (TDK), 5µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32776	View
B32778G0306J000	EPCOS (TDK), 30µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32778	View

B32774D8505K000

Part NumberB32774D8505K000
