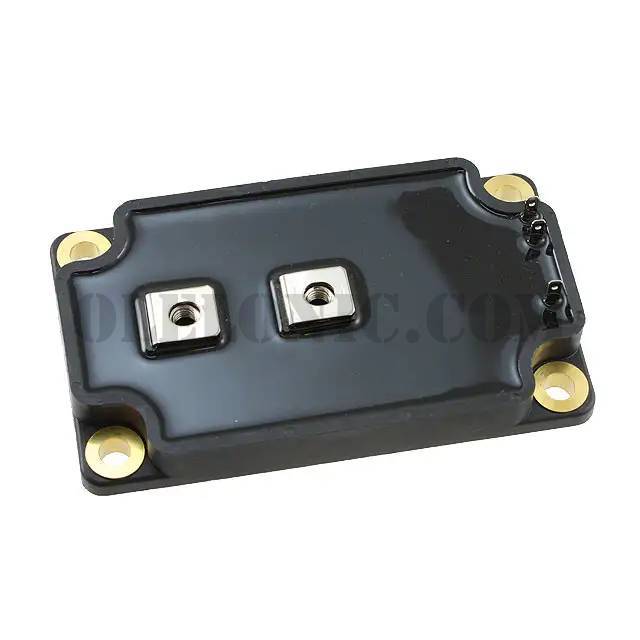

APTM50UM09FAG

APTM50UM09FAG

Part NumberAPTM50UM09FAG

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 500V 497A SP6

DatasheetAPTM50UM09FAG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 497A (Tc) 5000W (Tc) Chassis Mount SP6

To learn about the specification of APTM50UM09FAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM50UM09FAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM50UM09FAG.
We are offering APTM50UM09FAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM50UM09FAG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	APTM50UM09FAG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	497A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	10mOhm @ 248.5A, 10V
Vgs(th) (Max) @ Id	5V @ 30mA
Gate Charge (Qg) (Max) @ Vgs	1200nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	63300pF @ 25V
FET Feature	-
Power Dissipation (Max)	5000W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SP6
Package / Case	SP6
