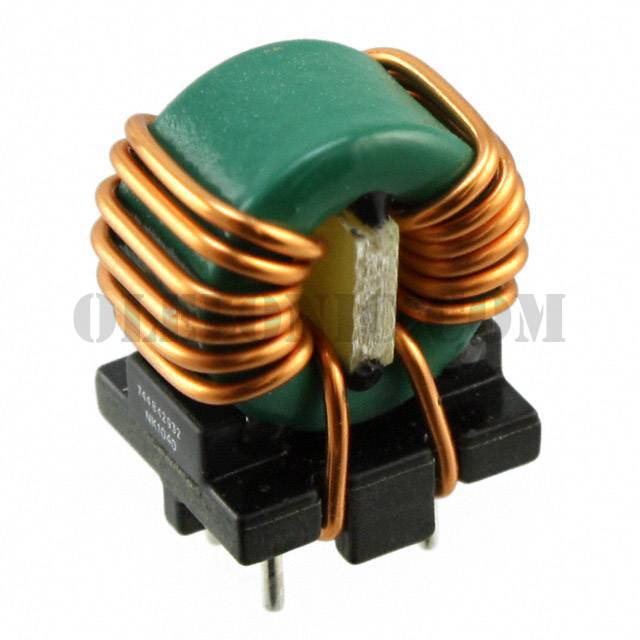

744842932


744842932

Part Number744842932

Manufacturer

Description

Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744842932 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package40
ManufacturerWurth Electronics Inc.
SeriesWE-CMB
PackagingTray
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency32µH @ 100kHz
Current Rating (Max)8.5A
DC Resistance (DCR) (Max)5.5mOhm
Voltage Rating - DC-
Voltage Rating - AC250V
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension0.728" L x 0.571" W (18.50mm x 14.50mm)
Height (Max)0.866" (22.00mm)
Package / CaseVertical, 4 PC Pin
