7448042001
7448042001

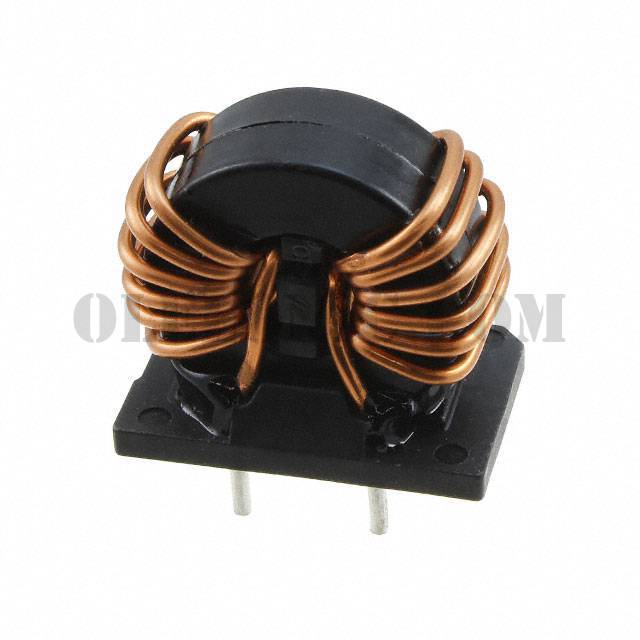

Part Number 7448042001 Description COMMON MODE CHOKE 1MH 20A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1mH @ 10kHz 2 Line Common Mode Choke Through Hole 20A DCR 2.4mOhm
To learn about the specification of 7448042001, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7448042001 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7448042001.
We are offering 7448042001 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
7448042001 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet 7448042001 Drawing Standard Package 25 Manufacturer Wurth Electronics Inc. Series WE-CMBNC Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 1mH @ 10kHz Current Rating (Max) 20A DC Resistance (DCR) (Max) 2.4mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.181" L x 0.748" W (30.00mm x 19.00mm) Height (Max) 1.260" (32.00mm) Package / Case Vertical, 4 PC Pin
