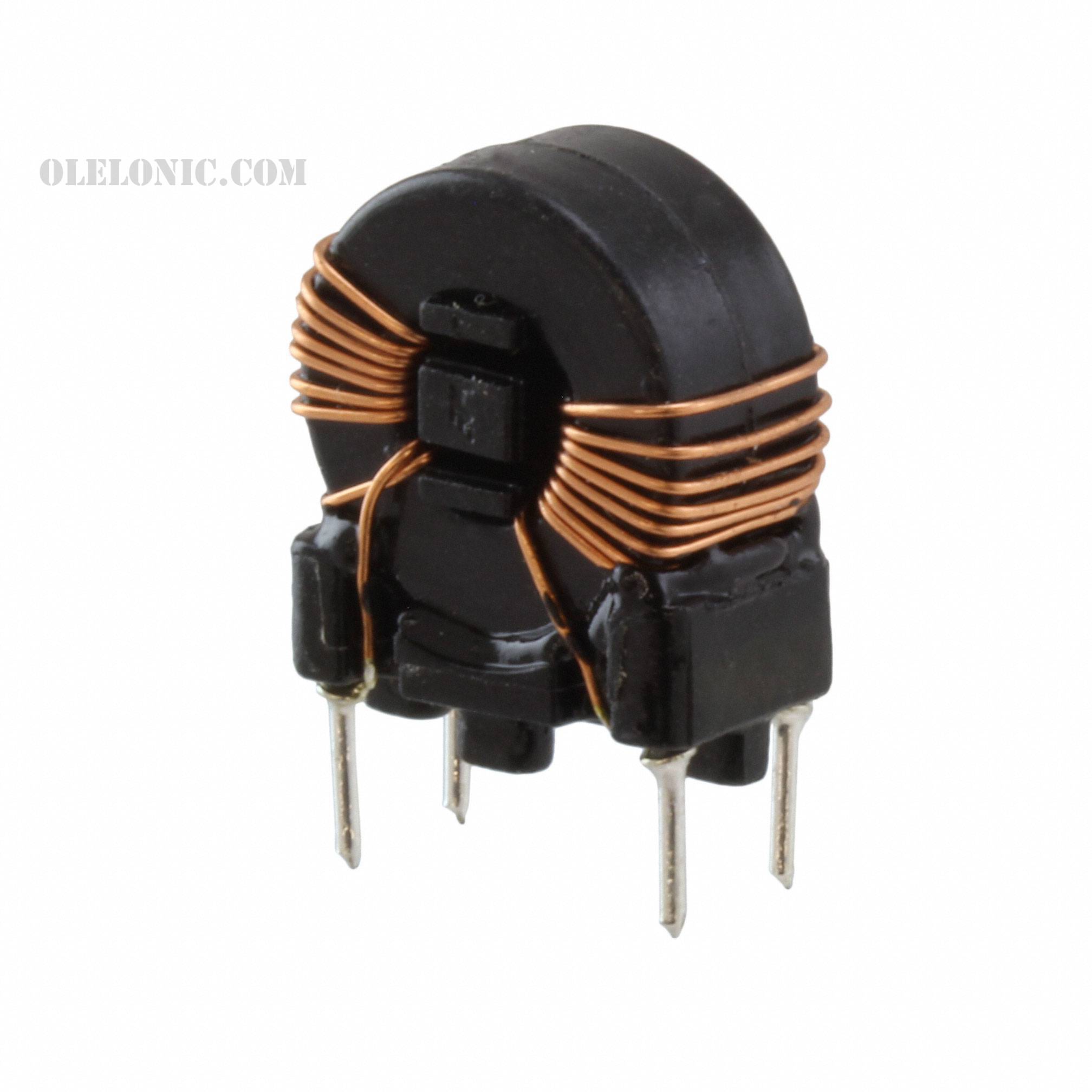

7448012501


7448012501

Part Number7448012501

Manufacturer

Description

Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7448012501 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package300
ManufacturerWurth Electronics Inc.
SeriesWE-CMBNC
PackagingBulk
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency1mH @ 10kHz
Current Rating (Max)2.5A
DC Resistance (DCR) (Max)55mOhm
Voltage Rating - DC-
Voltage Rating - AC250V
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension0.551" L x 0.295" W (14.00mm x 7.50mm)
Height (Max)0.630" (16.00mm)
Package / CaseVertical, 4 PC Pin

7448012501 - Related Products

More >>
7448030417 Wurth Electronics Inc., 17mH @ 10kHz 2 Line Common Mode Choke Through Hole 4A DCR 50mOhm, WE-CMBNC View
7448042001 Wurth Electronics Inc., 1mH @ 10kHz 2 Line Common Mode Choke Through Hole 20A DCR 2.4mOhm, WE-CMBNC View
7448060814 Wurth Electronics Inc., 14mH @ 10kHz 2 Line Common Mode Choke Through Hole 8A DCR 27mOhm, WE-CMBNC View
7448061309 Wurth Electronics Inc., 9mH @ 10kHz 2 Line Common Mode Choke Through Hole 13A DCR 15mOhm, WE-CMBNC View
7448062603 Wurth Electronics Inc., 3mH @ 10kHz 2 Line Common Mode Choke Through Hole 26A DCR 4.5mOhm, WE-CMBNC View
7448050490 Wurth Electronics Inc., 90mH @ 10kHz 2 Line Common Mode Choke Through Hole 3.5A DCR 110mOhm, WE-CMBNC View
7448026002 Wurth Electronics Inc., 1.5mH @ 10kHz 2 Line Common Mode Choke Through Hole 6A DCR 8mOhm, WE-CMBNC View
7448060535 Wurth Electronics Inc., 35mH @ 10kHz 2 Line Common Mode Choke Through Hole 5A DCR 90mOhm, WE-CMBNC View
7448021230 Wurth Electronics Inc., 30mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.2A DCR 280mOhm, WE-CMBNC View
7448030333 Wurth Electronics Inc., 33mH @ 10kHz 2 Line Common Mode Choke Through Hole 2.5A DCR 90mOhm, WE-CMBNC View
7448023005 Wurth Electronics Inc., 5mH @ 10kHz 2 Line Common Mode Choke Through Hole 3A DCR 40mOhm, WE-CMBNC View
7448051012 Wurth Electronics Inc., 12mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 15mOhm, WE-CMBNC View
