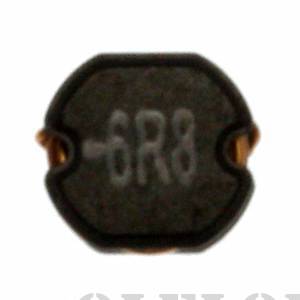

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	744774068
Standard Package	1500
Manufacturer	Wurth Electronics Inc.
Series	WE-PD2
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	6.8µH
Tolerance	±20%
Current Rating (Amps)	2.4A
Current - Saturation	5A
Shielding	Unshielded
DC Resistance (DCR)	82mOhm Max
Q @ Freq	-
Frequency - Self Resonant	28MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)	0.191" (4.85mm)

744773022	Wurth Electronics Inc., 2.2µH Unshielded Wirewound Inductor 2.5A 71mOhm Max Nonstandard, WE-PD2	View
784775233	Wurth Electronics Inc., 330µH Unshielded Wirewound Inductor 430mA 1.26Ohm Max Nonstandard, WE-PD2A	View
744774068	Wurth Electronics Inc., 6.8µH Unshielded Wirewound Inductor 2.4A 82mOhm Max Nonstandard, WE-PD2	View
7447745056	Wurth Electronics Inc., 5.6µH Unshielded Wirewound Inductor 2.3A 78mOhm Max Nonstandard, WE-PD2	View
744773082	Wurth Electronics Inc., 8.2µH Unshielded Wirewound Inductor 1.5A 146mOhm Max Nonstandard, WE-PD2	View
7447745022	Wurth Electronics Inc., 2.2µH Unshielded Wirewound Inductor 3.6A 36mOhm Max Nonstandard, WE-PD2	View
744775247	Wurth Electronics Inc., 470µH Unshielded Wirewound Inductor 360mA 1.96Ohm Max Nonstandard, WE-PD2	View
744773122	Wurth Electronics Inc., 22µH Unshielded Wirewound Inductor 1A 370mOhm Max Nonstandard, WE-PD2	View
744773033	Wurth Electronics Inc., 3.3µH Unshielded Wirewound Inductor 2A 86mOhm Max Nonstandard, WE-PD2	View
744774222	Wurth Electronics Inc., 220µH Unshielded Wirewound Inductor 420mA 1.57Ohm Max Nonstandard, WE-PD2	View
74477450056	Wurth Electronics Inc., 560nH Unshielded Wirewound Inductor 6.5A 10mOhm Max Nonstandard, WE-PD2	View
784775047	Wurth Electronics Inc., 4.7µH Unshielded Wirewound Inductor 4.5A 19mOhm Max Nonstandard, WE-PD2A	View
