Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	744774133
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-PD2
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite

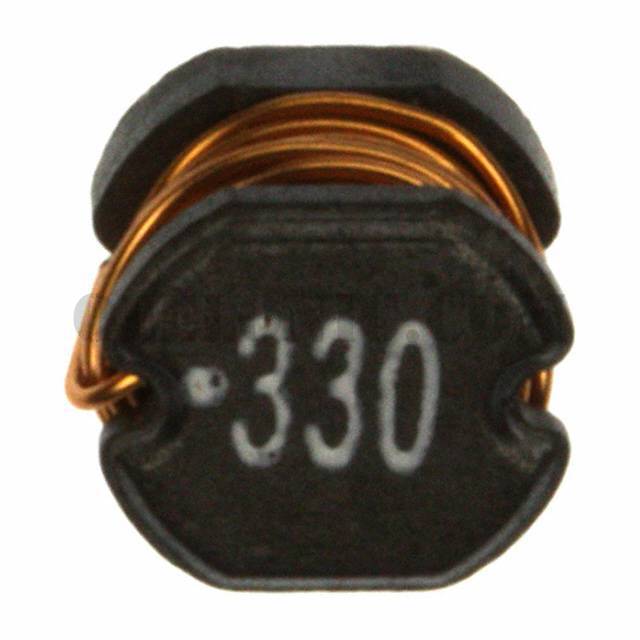

Inductance	33µH
Tolerance	±15%
Current Rating (Amps)	1.09A
Current - Saturation	1.17A
Shielding	Unshielded
DC Resistance (DCR)	230mOhm Max
Q @ Freq	-
Frequency - Self Resonant	14MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)	0.191" (4.85mm)
