74477450082


74477450082

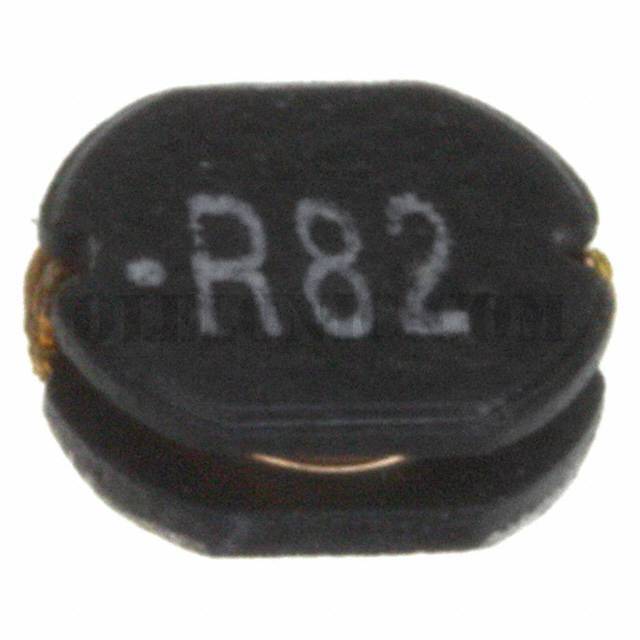

Part Number74477450082

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

74477450082 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package2000
ManufacturerWurth Electronics Inc.
SeriesWE-PD2
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance820nH
Tolerance±20%
Current Rating (Amps)5.4A
Current - Saturation5.8A
ShieldingUnshielded
DC Resistance (DCR)14mOhm Max
Q @ Freq-
Frequency - Self Resonant120MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)0.091" (2.30mm)
