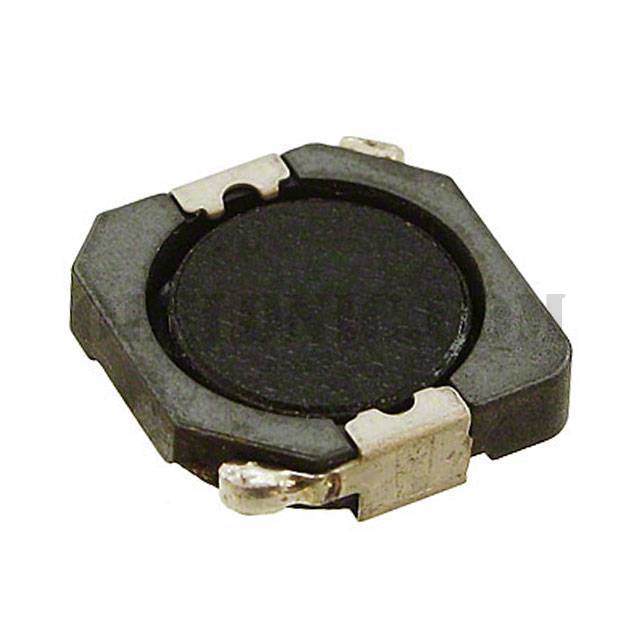

7447713047


7447713047

Part Number7447713047

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7447713047 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerWurth Electronics Inc.
SeriesWE-PD Performance
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance4.7µH
Tolerance±30%
Current Rating (Amps)4A
Current - Saturation6A
ShieldingShielded
DC Resistance (DCR)31mOhm Max
Q @ Freq-
Frequency - Self Resonant42MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)0.118" (3.00mm)
