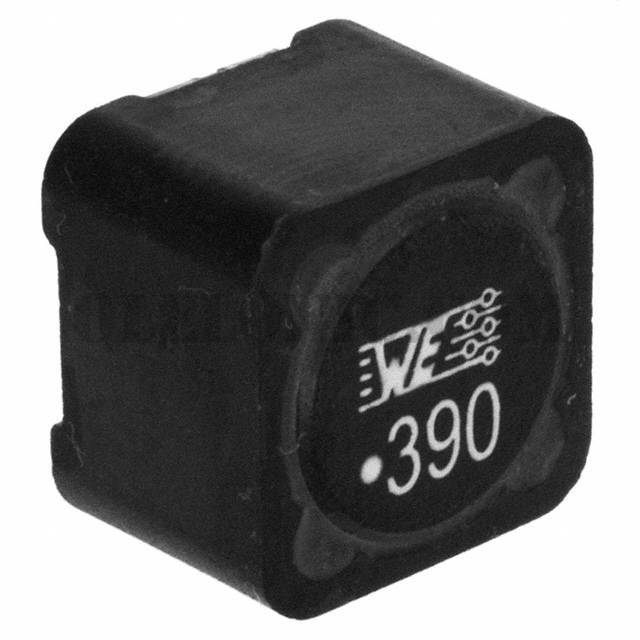

7447709390


7447709390

Part Number7447709390

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7447709390 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package250
ManufacturerWurth Electronics Inc.
SeriesWE-PD
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance39µH
Tolerance±20%
Current Rating (Amps)4.1A
Current - Saturation5A
ShieldingShielded
DC Resistance (DCR)56mOhm Max
Q @ Freq-
Frequency - Self Resonant6MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)0.394" (10.00mm)
