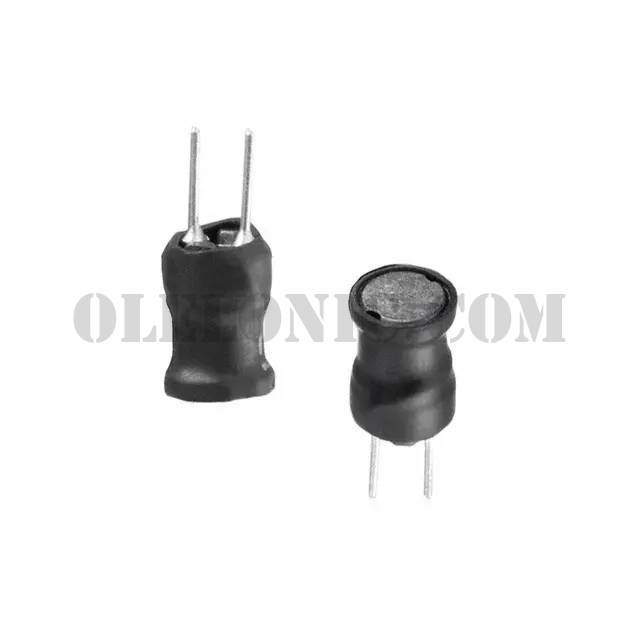

7447462101


7447462101

Part Number7447462101

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7447462101 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package400
ManufacturerWurth Electronics Inc.
SeriesWE-TI
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance100µH
Tolerance±10%
Current Rating (Amps)800mA
Current - Saturation800mA
ShieldingUnshielded
DC Resistance (DCR)550mOhm Max
Q @ Freq-
Frequency - Self Resonant7.1MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.236" Dia (6.00mm)
Height - Seated (Max)0.335" (8.50mm)
