Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	74456047
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-PD4
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	4.7µH
Tolerance	±20%
Current Rating (Amps)	5A
Current - Saturation	6A
Shielding	Unshielded
DC Resistance (DCR)	19mOhm Max
Q @ Freq	-
Frequency - Self Resonant	38MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max)	0.209" (5.30mm)

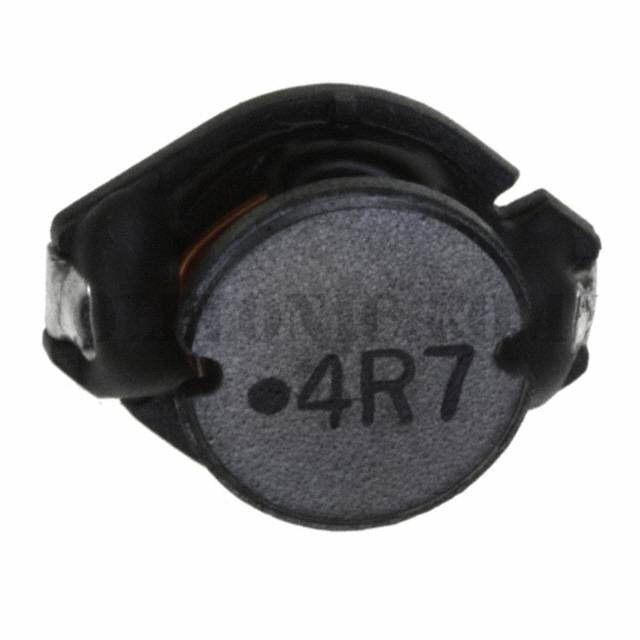

74456047	Wurth Electronics Inc., 4.7µH Unshielded Wirewound Inductor 5A 19mOhm Max Nonstandard, WE-PD4	View
7445510	Wurth Electronics Inc., 10µH Unshielded Wirewound Inductor 1.2A 160mOhm Max Nonstandard, WE-PD4	View
74455022	Wurth Electronics Inc., 2.2µH Unshielded Wirewound Inductor 2.4A 70mOhm Max Nonstandard, WE-PD4	View
74457247	Wurth Electronics Inc., 470µH Unshielded Wirewound Inductor 820mA 809mOhm Max Nonstandard, WE-PD4	View
74455022	Wurth Electronics Inc., 2.2µH Unshielded Wirewound Inductor 2.4A 70mOhm Max Nonstandard, WE-PD4	View
74455068	Wurth Electronics Inc., 6.8µH Unshielded Wirewound Inductor 1.4A 130mOhm Max Nonstandard, WE-PD4	View
7445820	Wurth Electronics Inc., 100µH Unshielded Wirewound Inductor 1.8A 190mOhm Max Nonstandard, WE-PD4	View
7445610	Wurth Electronics Inc., 10µH Unshielded Wirewound Inductor 3.3A 45mOhm Max Nonstandard, WE-PD4	View
74458122	Wurth Electronics Inc., 22µH Unshielded Wirewound Inductor 3.5A 47mOhm Max Nonstandard, WE-PD4	View
7445520	Wurth Electronics Inc., 100µH Unshielded Wirewound Inductor 300mA 1.27Ohm Max Nonstandard, WE-PD4	View
74456068	Wurth Electronics Inc., 6.8µH Unshielded Wirewound Inductor 3.8A 34mOhm Max Nonstandard, WE-PD4	View
74455222	Wurth Electronics Inc., 220µH Unshielded Wirewound Inductor 200mA 3.11Ohm Max Nonstandard, WE-PD4	View

74456047

Part Number74456047
