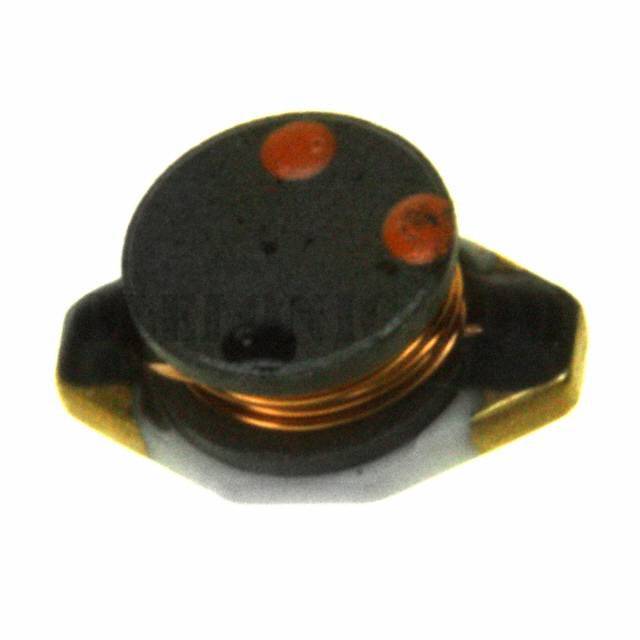

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	74455133
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-PD4
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	33µH
Tolerance	±20%
Current Rating (Amps)	600mA
Current - Saturation	580mA
Shielding	Unshielded
DC Resistance (DCR)	510mOhm Max
Q @ Freq	-
Frequency - Self Resonant	13MHz
Ratings	-
Operating Temperature	-40°C ~ 100°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max)	0.115" (2.92mm)

74455122	Wurth Electronics Inc., 22µH Unshielded Wirewound Inductor 800mA 370mOhm Max Nonstandard, WE-PD4	View
74458122	Wurth Electronics Inc., 22µH Unshielded Wirewound Inductor 3.5A 47mOhm Max Nonstandard, WE-PD4	View
74456247	Wurth Electronics Inc., 470µH Unshielded Wirewound Inductor 600mA 1.7Ohm Max Nonstandard, WE-PD4	View
74455222	Wurth Electronics Inc., 220µH Unshielded Wirewound Inductor 200mA 3.11Ohm Max Nonstandard, WE-PD4	View
7445610	Wurth Electronics Inc., 10µH Unshielded Wirewound Inductor 3.3A 45mOhm Max Nonstandard, WE-PD4	View
74455122	Wurth Electronics Inc., 22µH Unshielded Wirewound Inductor 800mA 370mOhm Max Nonstandard, WE-PD4	View
74456047	Wurth Electronics Inc., 4.7µH Unshielded Wirewound Inductor 5A 19mOhm Max Nonstandard, WE-PD4	View
74455033	Wurth Electronics Inc., 3.3µH Unshielded Wirewound Inductor 2A 80mOhm Max Nonstandard, WE-PD4	View
74457047	Wurth Electronics Inc., 4.7µH Unshielded Wirewound Inductor 8.5A 11mOhm Max Nonstandard, WE-PD4	View
74456168	Wurth Electronics Inc., 68µH Unshielded Wirewound Inductor 1.6A 240mOhm Max Nonstandard, WE-PD4	View
74457133	Wurth Electronics Inc., 33µH Unshielded Wirewound Inductor 3.4A 70mOhm Max Nonstandard, WE-PD4	View
74455133	Wurth Electronics Inc., 33µH Unshielded Wirewound Inductor 600mA 510mOhm Max Nonstandard, WE-PD4	View
