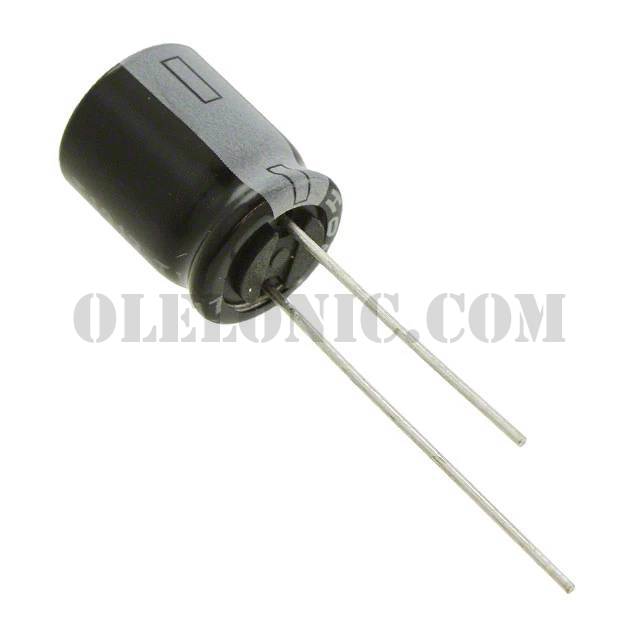

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLH Series Datasheet
Standard Package	500
Manufacturer	Rubycon
Series	ZLH
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	731.5mA @ 120Hz
Ripple Current @ High Frequency	1.33A @ 100kHz
Impedance	39 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

63ZLH150MEFC8X20	Rubycon, 150µF 63V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
80ZLH56MEFC8X11.5	Rubycon, 56µF 80V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
25ZLH1500MEFC12.5X20	Rubycon, 1500µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH47MEFC8X16	Rubycon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
25ZLH470MEFCT810X12.5	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
6.3ZLH470MEFC6.3X11	Rubycon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
35ZLH2200MEFCGC16X25	Rubycon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
16ZLH3900MEFC12.5X35	Rubycon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
25ZLH150MEFC6.3X11	Rubycon, 150µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
80ZLH560MEFC16X25	Rubycon, 560µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
16ZLH1500MEFC12.5X16	Rubycon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
25ZLH560MEFC8X20	Rubycon, 560µF 25V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View

35ZLH330MEFCT810X12.5

Part Number35ZLH330MEFCT810X12.5
