Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLH Series Datasheet
Standard Package	600
Manufacturer	Rubycon
Series	ZLH
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.415A @ 120Hz
Ripple Current @ High Frequency	3.45A @ 100kHz
Impedance	13 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.260" (32.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

63ZLH330MEFC10X23	Rubycon, 330µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
50ZLH220MEFC10X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH68MEFC8X20	Rubycon, 68µF 100V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
35ZLH1500MEFCG412.5X30	Rubycon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
25ZLH2200MEFC12.5X30	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH120MEFC10X23	Rubycon, 120µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
6.3ZLH2200MEFC10X20	Rubycon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
6.3ZLH3900MEFC12.5X20	Rubycon, 3900µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
10ZLH3900MEFC12.5X25	Rubycon, 3900µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
10ZLH1500MEFC8X20	Rubycon, 1500µF 10V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
35ZLH1800MEFC12.5X35	Rubycon, 1800µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
35ZLH470MEFCT810X16	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View

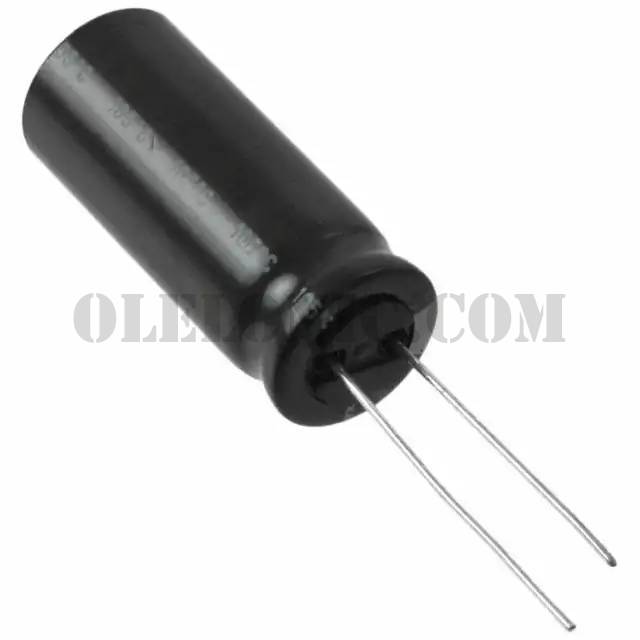

25ZLH2200MEFC12.5X30
