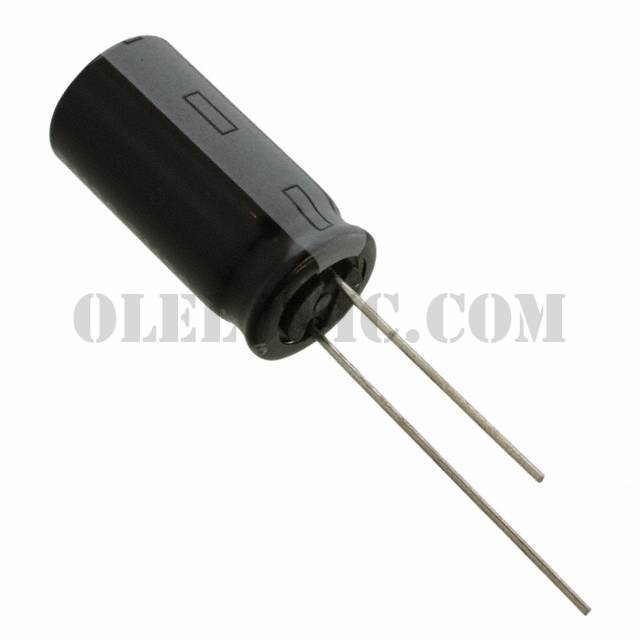

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLH Series Datasheet
Standard Package	1000
Manufacturer	Rubycon
Series	ZLH
Packaging	Bulk
Part Status	Active
Capacitance	1500µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.176A @ 120Hz
Ripple Current @ High Frequency	1.96A @ 100kHz
Impedance	20 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

6.3ZLH3900MEFC12.5X20	Rubycon, 3900µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
63ZLH560MEFC12.5X30	Rubycon, 560µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
80ZLH1000MEFC16X40	Rubycon, 1000µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
50ZLH680MEFC12.5X30	Rubycon, 680µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
6.3ZLH1200MEFC10X12.5	Rubycon, 1200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
80ZLH470MEFC12.5X35	Rubycon, 470µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
35ZLH1500MEFCG412.5X30	Rubycon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH390MEFC12.5X40	Rubycon, 390µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
10ZLH150MEFC5X11	Rubycon, 150µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
63ZLH150MEFC8X20	Rubycon, 150µF 63V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
35ZLH1500MEFC12.5X30	Rubycon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
6.3ZLH6800MEFC12.5X35	Rubycon, 6800µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View

16ZLH1500MEFC10X20

Part Number16ZLH1500MEFC10X20
