Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXJ Series
Standard Package	600
Manufacturer	Rubycon
Series	YXJ
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.344A @ 120Hz
Ripple Current @ High Frequency	2.93A @ 100kHz
Impedance	21 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

50YXJ22MTA5X11	Rubycon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
50YXJ470M12.5X20	Rubycon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
35YXJ470M10X16	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
50YXJ220M10X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
10YXJ470M6.3X11	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXJ	View
100YXJ330MGC16X25	Rubycon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
25YXJ220M6.3X11	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View
50YXJ220MCA10X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
16YXJ220MT16.3X11	Rubycon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View
50YXJ3R3M5X11	Rubycon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
16YXJ4700M16X25	Rubycon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
35YXJ220MCA8X11.5	Rubycon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View

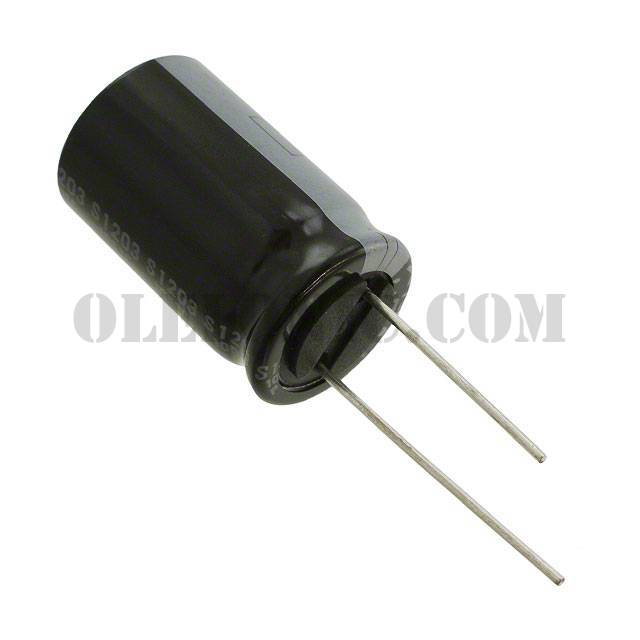

35YXJ2200M16X25

Part Number35YXJ2200M16X25
