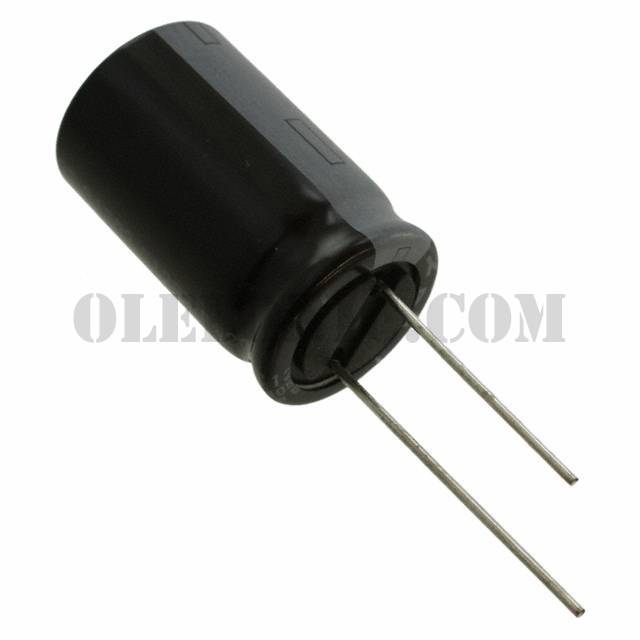

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXJ Series
Standard Package	600
Manufacturer	Rubycon
Series	YXJ
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.048A @ 120Hz
Ripple Current @ High Frequency	2.73A @ 100kHz
Impedance	32 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

50YXJ220MCA10X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
6.3YXJ470M6.3X11	Rubycon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXJ	View
100YXJ10M5X11	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
63YXJ100M10X12.5	Rubycon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
6.3YXJ220M5X11	Rubycon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXJ	View
100YXJ4R7M5X11	Rubycon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
25YXJ2200M12.5X25	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
16YXJ220M6.3X11	Rubycon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View
50YXJ1M5X11	Rubycon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
10YXJ100MTA5X11	Rubycon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXJ	View
16YXJ4700M16X25	Rubycon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
100YXJ220M12.5X25	Rubycon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View

50YXJ1000M16X25

Part Number50YXJ1000M16X25
