2SC5226A-5-TL-E


2SC5226A-5-TL-E

Part Number2SC5226A-5-TL-E

Manufacturer

Description

Datasheet

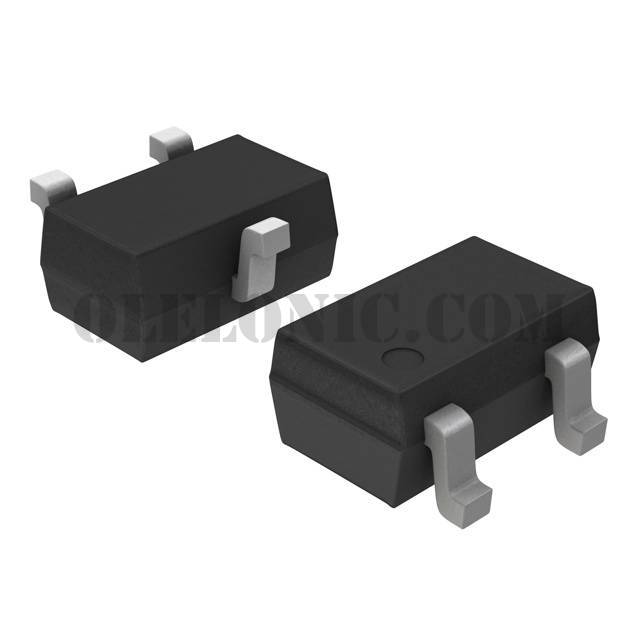

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

2SC5226A-5-TL-E - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet
Standard Package3000
ManufacturerON Semiconductor
Series-
PackagingTape & Reel (TR)
Part StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)10V
Frequency - Transition7GHz
Noise Figure (dB Typ @ f)1dB @ 1GHz
Gain12dB
Power - Max150mW
DC Current Gain (hFE) (Min) @ Ic, Vce135 @ 20mA, 5V
Current - Collector (Ic) (Max)70mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device Package3-MCP
