Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	2SC5084
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	7GHz
Noise Figure (dB Typ @ f)	1.1dB @ 1GHz
Gain	11dB
Power - Max	150mW
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 20mA, 10V
Current - Collector (Ic) (Max)	80mA
Operating Temperature	125°C (TJ)
Mounting Type	Surface Mount

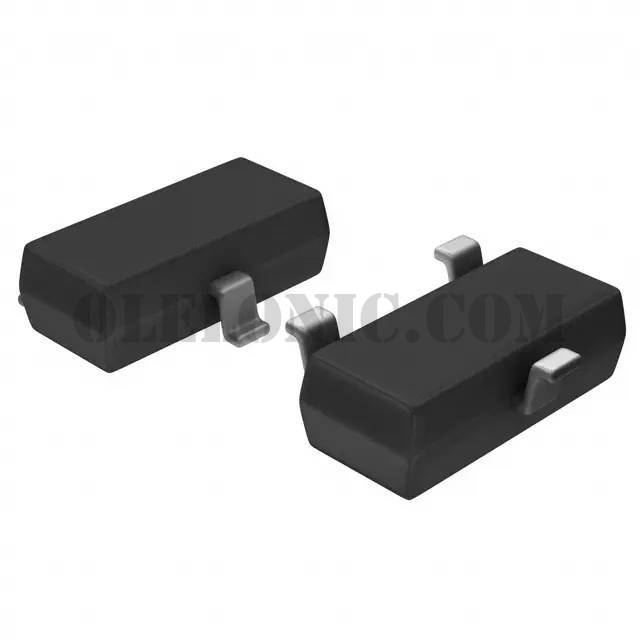

Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	S-Mini

BFP540H6327XTSA1	Infineon Technologies, RF Transistor NPN 5V 80mA 30GHz 250mW Surface Mount PG-SOT343-4,	View
2SC5085-O(TE85L,F)	Toshiba Semiconductor and Storage, RF Transistor NPN 12V 80mA 7GHz 100mW Surface Mount USM,	View
BFR181WH6327XTSA1	Infineon Technologies, RF Transistor NPN 12V 20mA 8GHz 175mW Surface Mount PG-SOT323-3,	View
BFU725F/N1,115	NXP USA Inc., RF Transistor NPN 2.8V 40mA 55GHz 136mW Surface Mount 4-SO,	View
BFU520XAR	NXP USA Inc., RF Transistor NPN 12V 30mA 10.5GHz 450mW Surface Mount SOT-143B, Automotive, AEC-Q101	View
MMBTH10LT1G	ON Semiconductor, RF Transistor NPN 25V 650MHz 225mW Surface Mount SOT-23-3 (TO-236),	View
BFU520XAR	NXP USA Inc., RF Transistor NPN 12V 30mA 10.5GHz 450mW Surface Mount SOT-143B, Automotive, AEC-Q101	View
BFU530R	NXP USA Inc., RF Transistor NPN 12V 40mA 11GHz 450mW Surface Mount SOT-143B, Automotive, AEC-Q101	View
BLT81,115	NXP USA Inc., RF Transistor NPN 9.5V 500mA 900MHz 2W Surface Mount SOT-223,	View
BFP650H6327XTSA1	Infineon Technologies, RF Transistor NPN 4.5V 150mA 37GHz 500mW Surface Mount PG-SOT343-4,	View
MCH4009-TL-H	ON Semiconductor, RF Transistor NPN 3.5V 40mA 25GHz 120mW Surface Mount 4-MCPH,	View
2SC5095-R(TE85L,F)	Toshiba Semiconductor and Storage, RF Transistor NPN 10V 15mA 10GHz 100mW Surface Mount SC-70,	View

2SC5084-O(TE85L,F)

Part Number2SC5084-O(TE85L,F)
