2N6661


2N6661

Part Number2N6661

Manufacturer

Description

Datasheet

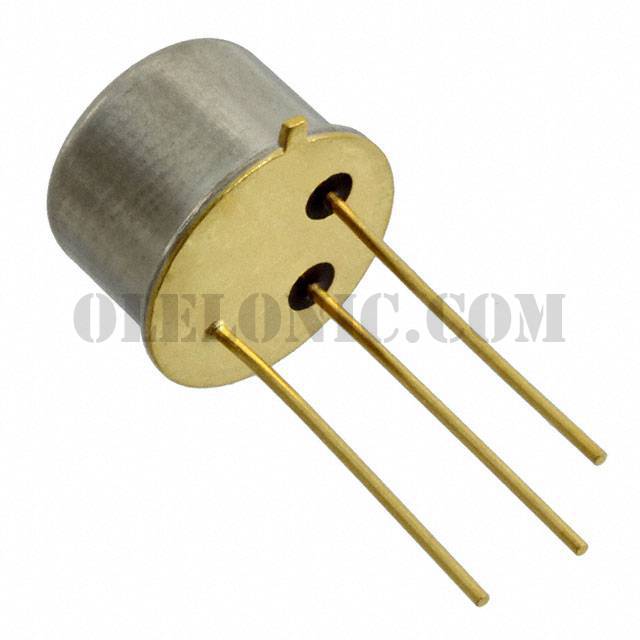

Package / CaseTO-205AD, TO-39-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

2N6661 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package500
ManufacturerMicrochip Technology
Series-
PackagingBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)90V
Current - Continuous Drain (Id) @ 25°C350mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs4Ohm @ 1A, 10V
Vgs(th) (Max) @ Id2V @ 1mA
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds50pF @ 24V
FET Feature-
Power Dissipation (Max)6.25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-39
Package / CaseTO-205AD, TO-39-3 Metal Can
