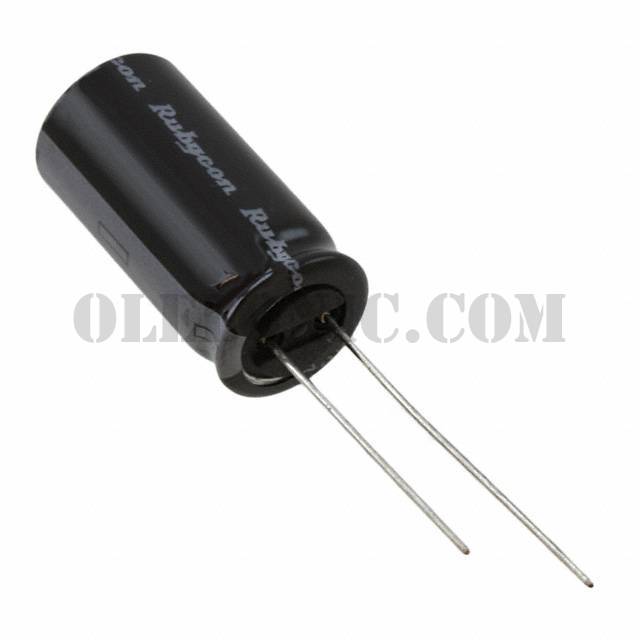

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLH Series Datasheet
Standard Package	1000
Manufacturer	Rubycon
Series	ZLH
Packaging	Bulk
Part Status	Active
Capacitance	4700µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.03A @ 120Hz
Ripple Current @ High Frequency	2.9A @ 100kHz
Impedance	15 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16ZLH1000MEFC10X16	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH470MEFC16X31.5	Rubycon, 470µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH82MEFC10X16	Rubycon, 82µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
80ZLH1500MEFC18X40	Rubycon, 1500µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
16ZLH470MEFC8X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
16ZLH2700MEFC12.5X25	Rubycon, 2700µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
35ZLH68MEFC6.3X11	Rubycon, 68µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
50ZLH100MEFCT78X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
6.3ZLH8200MEFC16X25	Rubycon, 8200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH120MEFC10X23	Rubycon, 120µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH18MEFC6.3X11	Rubycon, 18µF 100V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
35ZLH1500MEFC16X20	Rubycon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View

6.3ZLH4700MEFC12.5X25

Part Number6.3ZLH4700MEFC12.5X25
