Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLH Series Datasheet
Standard Package	1000
Manufacturer	Rubycon
Series	ZLH
Packaging	Bulk
Part Status	Active
Capacitance	1200µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	750mA @ 120Hz
Ripple Current @ High Frequency	1.25A @ 100kHz
Impedance	45 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

63ZLH390MEFC12.5X20	Rubycon, 390µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
80ZLH390MEFC16X20	Rubycon, 390µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH560MEFC16X35.5	Rubycon, 560µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
80ZLH390MEFC12.5X30	Rubycon, 390µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH330MEFC12.5X35	Rubycon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
50ZLH470MEFC12.5X20	Rubycon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
10ZLH3900MEFC12.5X25	Rubycon, 3900µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
63ZLH330MEFC10X23	Rubycon, 330µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
80ZLH1500MEFC18X40	Rubycon, 1500µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
10ZLH5600MEFC12.5X35	Rubycon, 5600µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH680MEFC18X35.5	Rubycon, 680µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
63ZLH120MEFC10X12.5	Rubycon, 120µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View

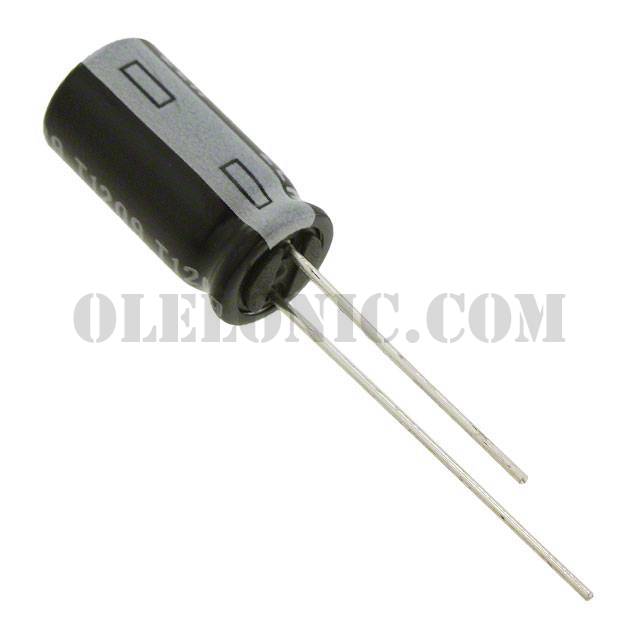

6.3ZLH1200MEFC8X16

Part Number6.3ZLH1200MEFC8X16
