Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	500
Manufacturer	Rubycon
Series	YXG
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	475.75mA @ 120Hz
Impedance	80 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

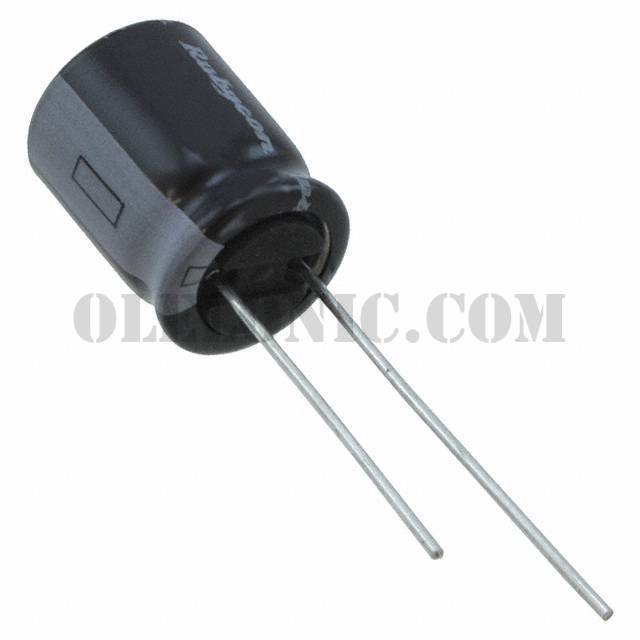

25YXG330MEFCT810X12.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
10YXG1000MEFCT810X16	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
6.3YXG4700MEFC12.5X30	Rubycon, 4700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
63YXG56MEFC8X11.5	Rubycon, 56µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
25YXG470MEFC8X20	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
6.3YXG1200MEFC10X16	Rubycon, 1200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
50YXG100MEFC8X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
25YXG100MEFC6.3X11	Rubycon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
16YXG120MEFC6.3X11	Rubycon, 120µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
35YXG1000MEFCG412.5X25	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
6.3YXG2200MEFC10X23	Rubycon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
10YXG560MEFC10X12.5	Rubycon, 560µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View

25YXG330MEFCT810X12.5

Part Number25YXG330MEFCT810X12.5
