Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	1000
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	3300µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.561A @ 120Hz
Ripple Current @ High Frequency	2.23A @ 100kHz
Impedance	27 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

6.3YXG1500MEFC10X20	Rubycon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
10YXG560MEFC10X12.5	Rubycon, 560µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
35YXG1000MEFC12.5X25	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
6.3YXG4700MEFC12.5X30	Rubycon, 4700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
16YXG1200MEFC10X23	Rubycon, 1200µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
16YXG1000MEFC12.5X16	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG2200MEFC18X25	Rubycon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
10YXG470MEFC8X11.5	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
35YXG1000MEFCG412.5X25	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG220MEFC8X16	Rubycon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
25YXG680MEFC10X20	Rubycon, 680µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
6.3YXG1000MEFC8X16	Rubycon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View

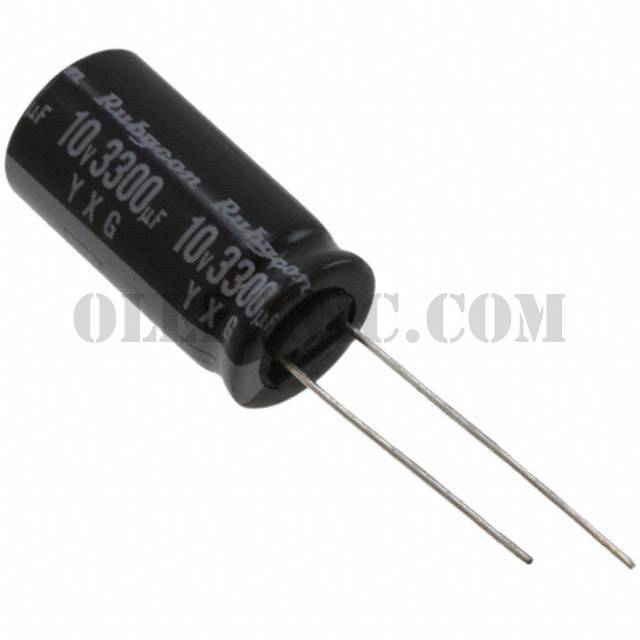

10YXG3300MEFC12.5X25

Part Number10YXG3300MEFC12.5X25
