Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	1000
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	1200µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	990mA @ 120Hz
Ripple Current @ High Frequency	1.65A @ 100kHz
Impedance	42 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

35YXG470MEFCT810X20	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
10YXG2200MEFC12.5X20	Rubycon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG1000MEFCG412.5X25	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
6.3YXG2200MEFC10X23	Rubycon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
35YXG150MEFC8X11.5	Rubycon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
10YXG1000MEFC10X16	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
35YXG120MEFC8X11.5	Rubycon, 120µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
50YXG220MEFCT810X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
25YXG470MEFC8X20	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
100YXG82MEFC12.5X16	Rubycon, 82µF 100V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
16YXG3900MEFC16X25	Rubycon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
16YXG100MEFC5X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View

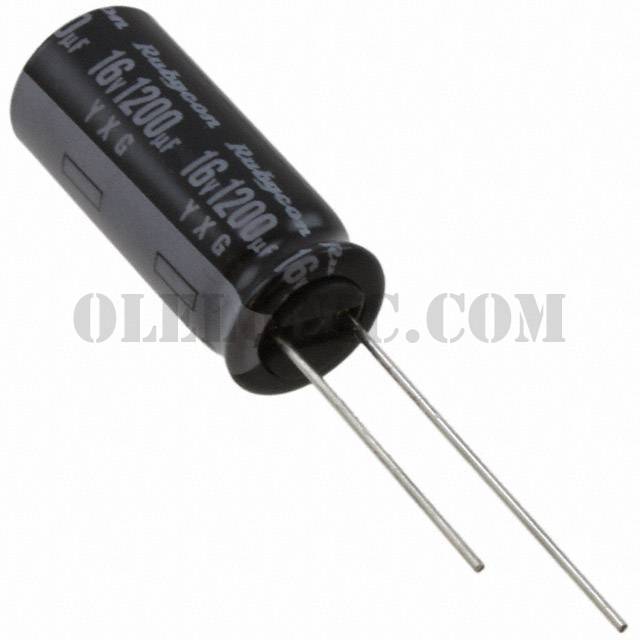

16YXG1200MEFC10X23
