Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	BXC Series
Standard Package	600
Manufacturer	Rubycon
Series	BXC
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	688.5mA @ 120Hz
Ripple Current @ High Frequency	1.53A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

160BXC33MEFC10X20	Rubycon, 33µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
450BXC47MEFC18X25	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View
500BXC10MEFC12.5X20	Rubycon, 10µF 500V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View
200BXC33MEFC10X20	Rubycon, 33µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
400BXC10MEFC10X20	Rubycon, 10µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
250BXC22MEFCT810X16	Rubycon, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
450BXC10MEFCT810X20	Rubycon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
250BXC150MEFC18X25	Rubycon, 150µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View
350BXC6.8MEFC10X16	Rubycon, 6.8µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
250BXC47MEFC12.5X20	Rubycon, 47µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View
400BXC6.8MEFC10X16	Rubycon, 6.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
400BXC1MEFCT810X12.5	Rubycon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, BXC	View

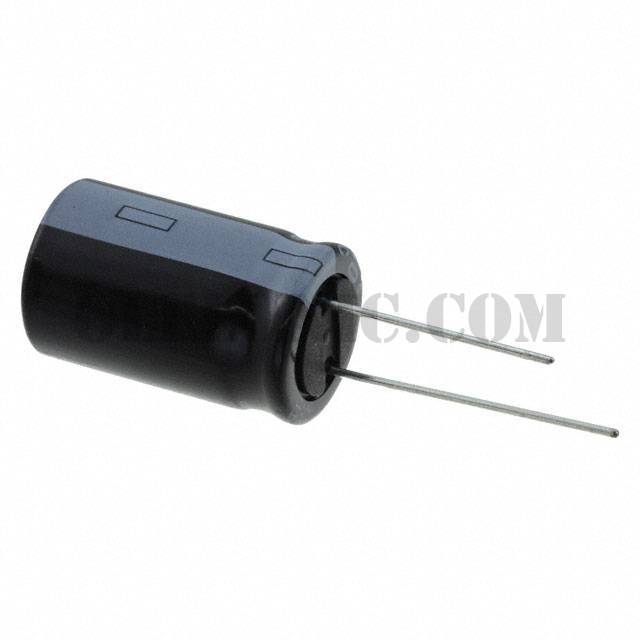

250BXC100MEFC16X25

Part Number250BXC100MEFC16X25
