Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	BXC Series
Standard Package	1000
Manufacturer	Rubycon
Series	BXC
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	188mA @ 120Hz
Ripple Current @ High Frequency	470mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.709" (18.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

250BXC22MEFC10X16	Rubycon, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
400BXC1MEFCT810X12.5	Rubycon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, BXC	View
400BXC2.2MEFC8X11.5	Rubycon, 2.2µF 400V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, BXC	View
250BXC10MEFC10X16	Rubycon, 10µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
400BXC68MEFC18X25	Rubycon, 68µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View
400BXC47MEFC16X25	Rubycon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View
450BXC10MEFCT810X20	Rubycon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
250BXC4.7MEFC8X11.5	Rubycon, 4.7µF 250V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, BXC	View
160BXC150MEFC16X25	Rubycon, 150µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View
200BXC33MEFC10X20	Rubycon, 33µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
350BXC22MEFC12.5X20	Rubycon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View
350BXC47MEFC16X20	Rubycon, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View

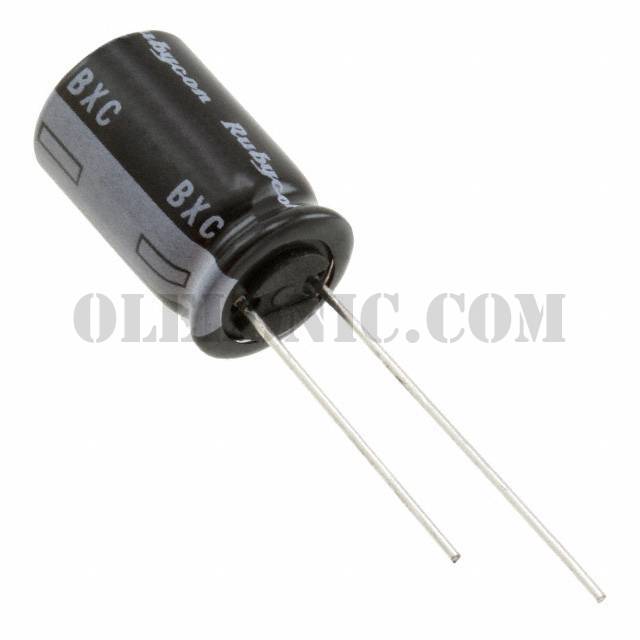

250BXC22MEFC10X16

Part Number250BXC22MEFC10X16
