Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLG Series
Standard Package	2000
Manufacturer	Rubycon
Series	ZLG
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	550mA @ 120Hz
Ripple Current @ High Frequency	1A @ 100kHz
Impedance	36 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

10ZLG100MEFCT15X11	Rubycon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, ZLG	View
10ZLG470MEFC8X11.5	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, ZLG	View
10ZLG100MEFC6.3X7	Rubycon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, ZLG	View
25ZLG220MEFC8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, ZLG	View
25ZLG47MEFC6.3X7	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, ZLG	View
35ZLG22MEFC6.3X7	Rubycon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, ZLG	View
6.3ZLG330MEFC6.3X11	Rubycon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, ZLG	View
25ZLG100MEFC6.3X11	Rubycon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, ZLG	View
10ZLG100MEFCT15X11	Rubycon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, ZLG	View
10ZLG220MEFC6.3X11	Rubycon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, ZLG	View
35ZLG470MEFC10X20	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, ZLG	View
35ZLG56MEFC6.3X11	Rubycon, 56µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, ZLG	View

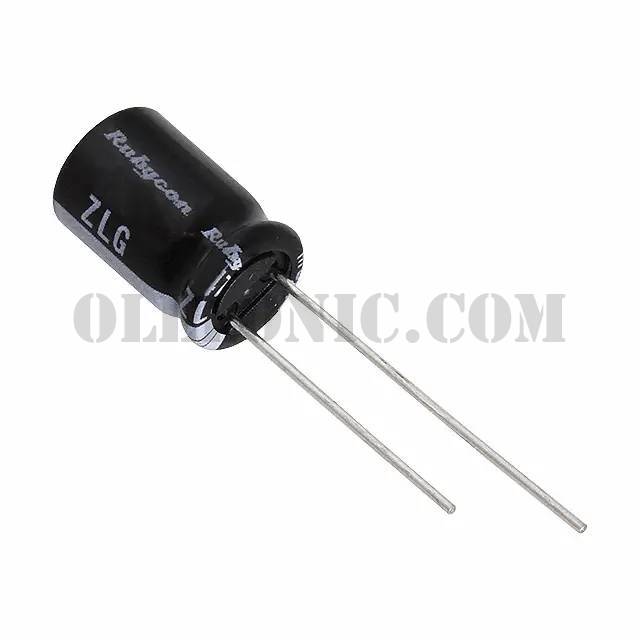

10ZLG470MEFC8X11.5
