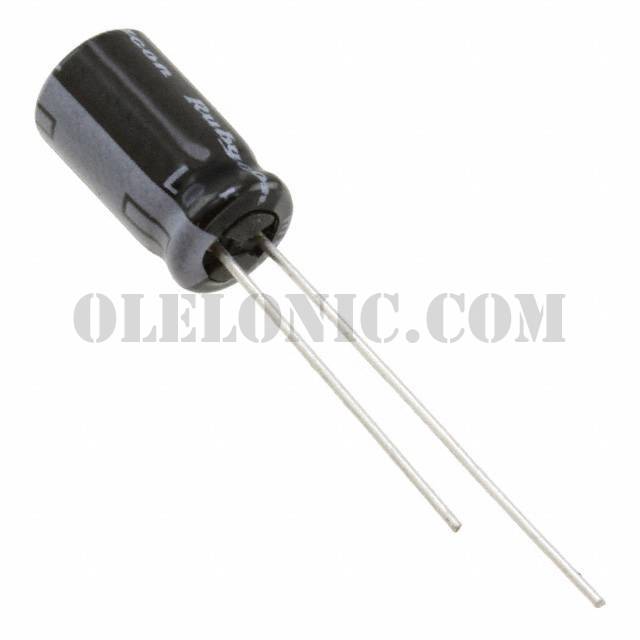

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLG Series
Standard Package	2000
Manufacturer	Rubycon
Series	ZLG
Packaging	Bulk
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	372.4mA @ 120Hz
Ripple Current @ High Frequency	760mA @ 100kHz
Impedance	65 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.484" (12.30mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
