ZXM62P03E6TA

ZXM62P03E6TA

Part NumberZXM62P03E6TA

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 30V 2.6A SOT-23-6

DatasheetZXM62P03E6

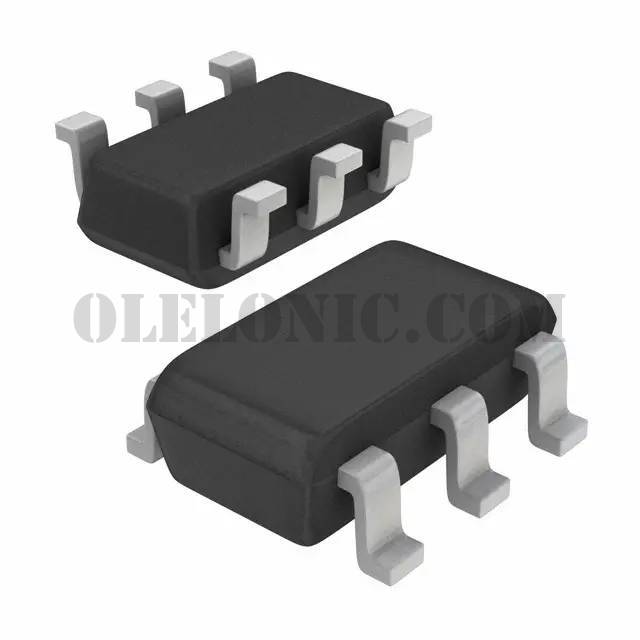

Package / CaseSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 1.5A (Ta) 625mW (Ta) Surface Mount SOT-26

To learn about the specification of ZXM62P03E6TA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZXM62P03E6TA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZXM62P03E6TA.
We are offering ZXM62P03E6TA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZXM62P03E6TA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	ZXM62P03E6
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	150mOhm @ 1.6A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10.2nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	330pF @ 25V
FET Feature	-
Power Dissipation (Max)	625mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-26
Package / Case	SOT-23-6
