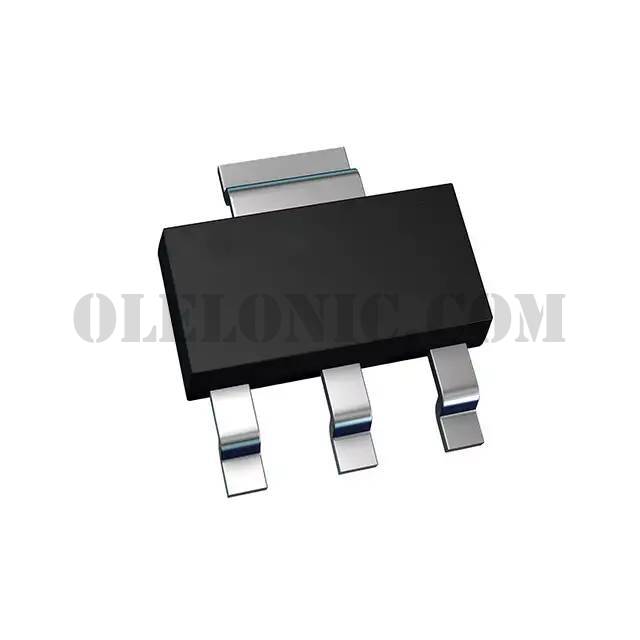

ZVN2110GTA

ZVN2110GTA

Part NumberZVN2110GTA

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 100V 500MA SOT223

DatasheetZVN2110G

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 500mA (Ta) 2W (Ta) Surface Mount SOT-223

To learn about the specification of ZVN2110GTA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZVN2110GTA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZVN2110GTA.
We are offering ZVN2110GTA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZVN2110GTA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	ZVN2110G
Standard Package	1000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	2.4V @ 1mA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	75pF @ 25V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
