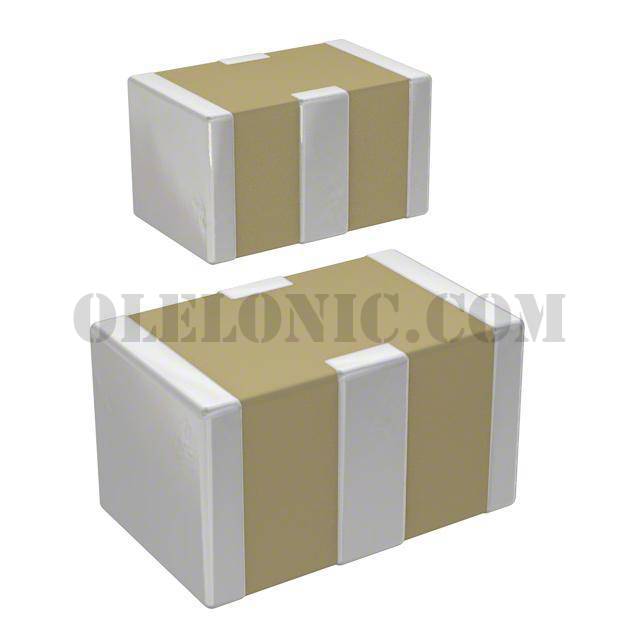

Categories	Filters / Feed Through Capacitors
Datasheet	W2(F,H), W3F Series
Standard Package	4000
Manufacturer	AVX Corporation
Series	W2H
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	0.047µF
Tolerance	-20%, +50%
Voltage - Rated	50V
Current	2A
DC Resistance (DCR) (Max)	150mOhm
Operating Temperature	-55°C ~ 125°C
Insertion Loss	-
Temperature Coefficient	X7R
Ratings	-
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric), 4 PC Pad
Size / Dimension	0.079" L x 0.049" W (2.01mm x 1.25mm)
Height (Max)	0.045" (1.14mm)
Thread Size	-

W2H15C4738AT1F	AVX Corporation, 0.047µF Feed Through Capacitor 50V 2A 150mOhm 0805 (2012 Metric), 4 PC Pad, W2H	View
W2H13C1048AT1F	AVX Corporation, 0.1µF Feed Through Capacitor 25V 2A 150mOhm 0805 (2012 Metric), 4 PC Pad, W2H	View
W2H15C4738AT1A	AVX Corporation, 0.047µF Feed Through Capacitor 50V 2A 150mOhm 0805 (2012 Metric), 4 PC Pad, W2H	View
W2H13C1048AT1A	AVX Corporation, 0.1µF Feed Through Capacitor 25V 2A 150mOhm 0805 (2012 Metric), 4 PC Pad, W2H	View
W2H11A1018AT1F	AVX Corporation, 100pF Feed Through Capacitor 100V 500mA 150mOhm 0805 (2012 Metric), W2H	View
W2H15C2238AT1A	AVX Corporation, Feed Through Capacitor,	View
W2H13C1048AT1A	AVX Corporation, 0.1µF Feed Through Capacitor 25V 2A 150mOhm 0805 (2012 Metric), 4 PC Pad, W2H	View
W2H15C2238AT1A	AVX Corporation, Feed Through Capacitor,	View
W2H13C1048AT1F	AVX Corporation, 0.1µF Feed Through Capacitor 25V 2A 150mOhm 0805 (2012 Metric), 4 PC Pad, W2H	View
W2H11A1018AT1F	AVX Corporation, Feed Through Capacitor,	View
W2H11A4718AT1F	AVX Corporation, 470pF Feed Through Capacitor 100V 500mA 150mOhm 0805 (2012 Metric), 4 PC Pad, W2H	View
W2H15C1028AT1F	AVX Corporation, 1000pF Feed Through Capacitor 50V 1A 150mOhm 0805 (2012 Metric), 4 PC Pad, W2H	View

W2H15C4738AT1A

Part NumberW2H15C4738AT1A
